Weather-proof luminaires Tugra Prisms Grey tubular ET 63W 8000lm Narrow (N) IP69K IK03 3 SDCM

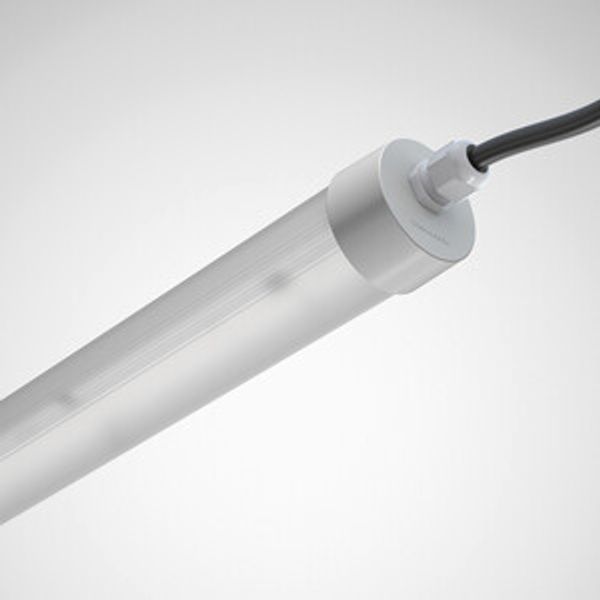

Multi-variable and modern tube luminaire with 75 mm profile diameter. PMMA version of the luminaire due to its higher UV resistance is suitable for use in non-canopied outdoor areas. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. For wall and ceiling mounting. Standard stainless steel mounting clips (2 pieces, V2A) with triangle included in the scope of supply. Optional accessories enable further mounting concepts. For individual luminaire applications. The continuous mounting channel of the luminaire body enables very high flexibility in positioning the fixing points. The packaging is made of recyclable cardboard, plastic-free. Multiple packaging with 28 luminaires as well as project packaging with 108 luminaires per packaging unit further reduce the general consumption of resources in the overall process. Cylindrical profile with photometrically effective prismatic structure as secondary optic. With opal profile area above and translucent profile area below the mounting channel. With symmetric narrow light distribution. With mainly direct light distribution. With slight indirect component for surface illumination. Luminaire luminous flux and light color fixed. Luminaire luminous flux 8000 lm, connected load 63 W, maximum luminous efficiency of luminaire 127 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. Gas-tight luminaire profile made of PMMA. End cap with high-quality matt surface structure, surface quality acc. to VDI30 made from ASA. End cap colour gray (RAL 7035). End caps cannot be deinstalled or opened. Luminaire length 2065 mm, Luminaire height 81 mm, Ø Luminaire body 81 mm. The gear tray is fixed to the luminaire profile with transparent devices to avoid shadowing. Permissible ambient temperature (ta) -25 °C - 30 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP69K, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 3,4 kg. Connection via a 3-pole cable routed to the outside (3000 mm). With electronic transformer, switchable. The ENEC certification by an independent testing laboratory is in preparation. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
