Weather-proof luminaires Kratex Diffuser Yellow ETDD 25W 2650lm Emergency light Lambertian (L) IP66 IK05 3 SDCM

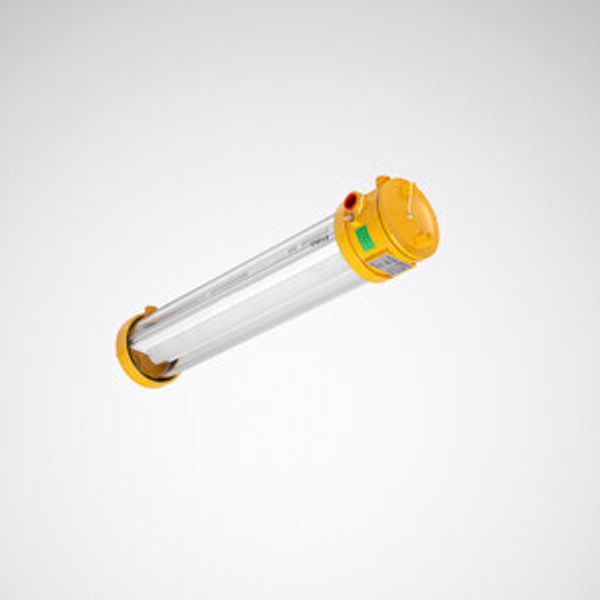

Explosion-proof LED tube luminaire with borosilicate glass tube. In emergency light version with single battery system, nominal operation time 3 hours. ATEX mark . Mounting accessory must be ordered separately. Also suitable for suspended mounting by means of accessories to be ordered separately. With Lambertian light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 2650 lm, connected load 25 W, maximum luminous efficiency of luminaire 106 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 55 °C) = 50,000 h. Luminaire body made of 9 mm thick borosilicate tube, end caps made of aluminium alloy. End cap colour signal yellow Inner gear tray made of sheet steel, powder-coated white. Sealing made of NBR (nitrile butadiene rubber). Dimensions (L x W): 750 mm x 157 mm, luminaire height 197 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66. Permissible ambient temperature . Weight: 6,2 kg. Connection terminal, plug-in (5 x 2,5 mm2). With 2 cable entry openings with 3/4 inch receptacle (NPT) for EX cable glands. EX cable glands not included in scope of delivery. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
