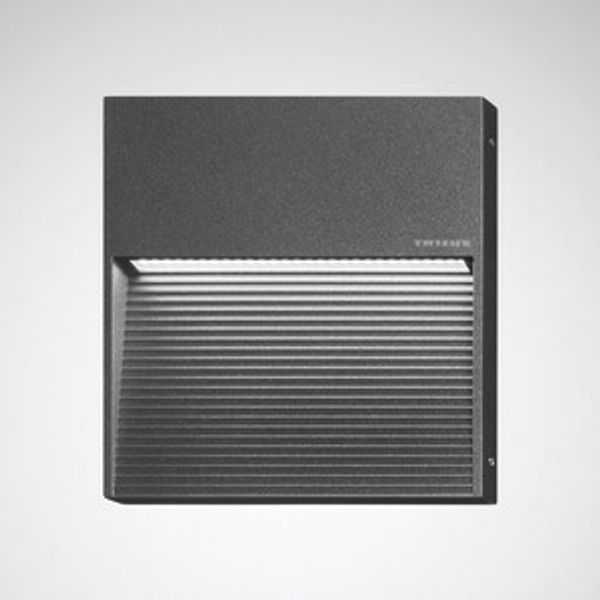

Wall and ceiling luminaire Invego Square Lens Anthracite ET 9,70W 338lm 90 asymmetric medium wide (AM) IP65 IK08 3 SDCM image 1
TRILUX

Wall and ceiling luminaire Invego Square Lens Anthracite ET 9,70W 338lm 90 asymmetric medium wide (AM) IP65 IK08 3 SDCM

En stock: Non Stock fournisseur: Non Quantité minimale de commande: 1
Prix (hors TVA):
338,53 €
Ce prix est valable jusqu’au 24.12.25
EAN: 4018242514632
MPN: 7388240
Colis: 1
Palette: 108
Délai de livraison estimé à notre entrepôt (environ): 4-6 weeks

Technical Information

État de l’article Nouveau
Nom du fabricant Wall and ceiling luminaire Invego Square Lens Anthracite ET 9,70W 338lm 90 asymmetric medium wide (AM) IP65 IK08 3 SDCM
Marque TRILUX
Catégories Luminaires muraux et plafonniers
Pays d’origine IT

Détails d’emballage

Niveau d’emballage 1 4018242514632, 4018242514632
Niveau d’emballage 2 4018242810291

Description

Design-oriented, very flat surface-mounted or recessed luminaire for matching lighting concepts indoors and outdoors. Luminaire in square design. For surface-mounting, or using accessories to be ordered separately (Invego...BE concrete casting box with mounting set) for flush installation in indoor and outdoor applications. With asymmetric medium wide light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 338 lm, connected load 9,7 W, maximum luminous efficiency of luminaire 35 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 90. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. Luminaire body of die-cast aluminium. Cover of hardened glass. High impact-resistance. Surface anthracite coated (DB 703). Dimensions (L x W): 200 mm x 200 mm, luminaire height 30 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK08. Weight: 1,9 kg. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 1 kV / 2 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
