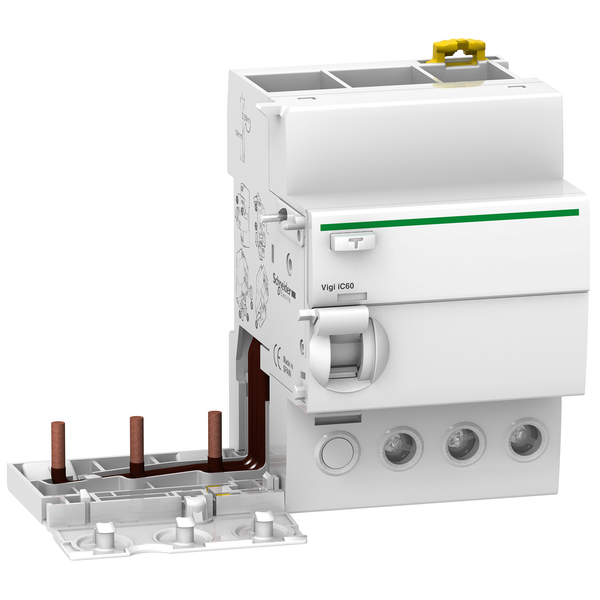

Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - AC type
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - AC type |
| Marque | Schneider Electric |
| Catégories |
Accessories (Automatics & control)
|
| Pays d’origine | CN |
| Code du système harmonisé | 8536 3030 00 |
| Courant nominal | 63 A |
| Tension nominale d'isolation Ui | 500 V |
| Nombre de pôles | 3 |
| Délai réglable | No |
| Temps de retard max. | 0 ms |
| Type de courant de fuite | AC |
| Pouvoir de surtension | 0.25 kA |
| Degré de pollution | 3 |
| Courant de défaut nominal | 0.3 A |
| Tension nominale | 400-415 V |
| Fréquence | 50/60 Hz |
| Degré de protection (IP) | IP20 |
| Section du conducteur raccordable à âme pleine | 1-35 mm² |
| Section des conducteurs connectables multi-câblés | 1-25 mm² |
| Avec dispositif de verrouillage | No |
| Température ambiante pendant le fonctionnement | 5-60 °C |
| Courant de défaut nominal réglable | No |
| Version anti-déclenchement de nuisance | No |
| Tension nominale de tenue aux chocs Uimp | 6 kV |
Détails d’emballage
| Niveau d’emballage 1 | 3606480087394 |
| Niveau d’emballage 2 | 3606480087392 |
Téléchargements
Description
This Acti9 Vigi iC60 is a modular add-on residual current devices. It is a 3P, rated current is 63A, operating voltage is 400VAC to 415VAC according to IEC 61009-1. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. It can be combined with iC60 or Acti9 Reflex iC60, to provide protection of persons and protection of installations. This product is compliant with IEC 61009-1 and EN 61009-1 standard. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The dimensions are (W) 117mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature -5°C to +60°C. The storage temperature is -40°C to +85°C.
