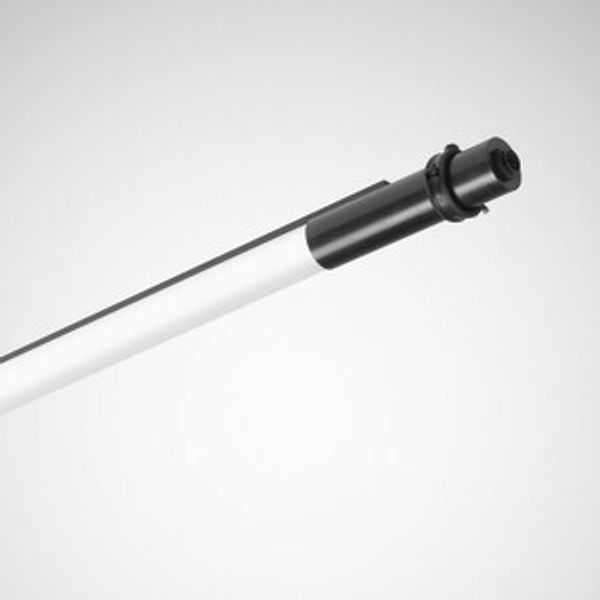

Surface-mounted luminaire So-Tube D Diffuser Black tubular ETDD 14W 2000lm Lambertian (L) IK02 3 SDCM

LED tube luminaire made of semi-specular PMMA for surface mounting as well as for suspended mounting via accessories to be ordered separately. Quick-connect system type Wieland. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. With tubular PMMA diffuser, semi-specular. With Lambertian light distribution. With mainly direct light distribution. With slight indirect component for decorative surface illumination. Division of total light distribution (direct/indirect): 88/12 %. Luminaire luminous flux and light color fixed. Luminaire luminous flux 2000 lm, connected load 14 W, maximum luminous efficiency of luminaire 143 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 60,000 h. Luminaire body of semi-specular PMMA with black coated aluminium channel. End caps made of aluminium, Surface coated black (RAL 9017). Luminaire length 1390 mm, height 66 mm, Luminaire diameter Ø 58 mm. Permissible ambient temperature (ta): -20 °C - +. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK02, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 1,6 kg. Connection devices at both face ends implemented as socket or plug (WIELAND type RST 20i5). Connection and interconnection cables available as accessories to be ordered separately. Through-wiring for realising multiple arrangements and continuous lines featured in the luminaire. With electronic control gear unit, digitally dimmable (DALI) Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
