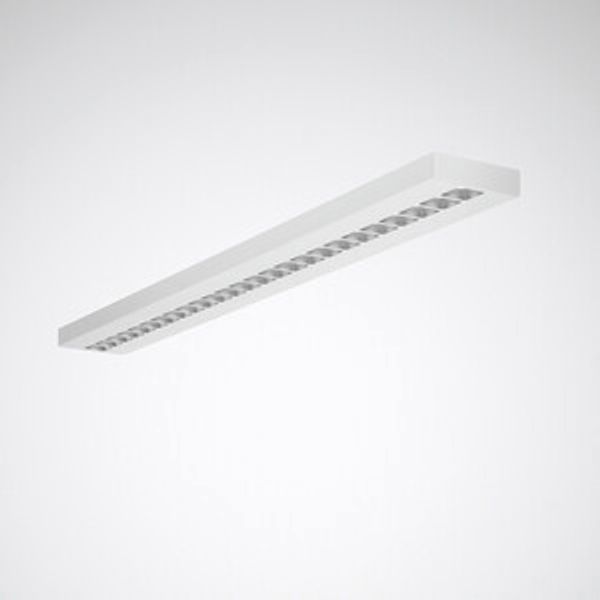

Surface-mounted luminaire Creavo D Lens White ET 25W 3800lm Wide reduced glare UGR16 (W16) IP40 IK03 3 SDCM

Rectangular surface-mounted LED ceiling luminaire with light elements consisting of lens systems and cubic screening elements with high efficiency. Surface-mounted luminaire for single luminaire or continuous line applications. The optical system with a precisely coordinated combination of LED lenses and anti-glare elements provides very high visual comfort with very high photometric performance. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 16. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 1500 cd/m2 for beam angle above 65° all-round. Luminaire luminous flux and light color fixed. The LED system consists of 25 cubic light elements embedded flush with the luminaire surface. Luminaire luminous flux 3800 lm, connected load 25 W, maximum luminous efficiency of luminaire 152 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 100,000 h, mean rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated white (RAL 9016). Screening cubes silver-grey, with fine surface structure. Dimensions (L x W): 1509 mm x 170 mm, luminaire height 46 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP40, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 6,8 kg. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Control gear unit is open-circuit proof and protected against faulty connection, short circuit, overload and overtemperature. Output ripple of the control gear unit ≤ 4 % for effective control of the LED system and for flicker-free light. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires with a harmonised appearance. Project-specific versions with varying luminaire characteristics are possible on request. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
