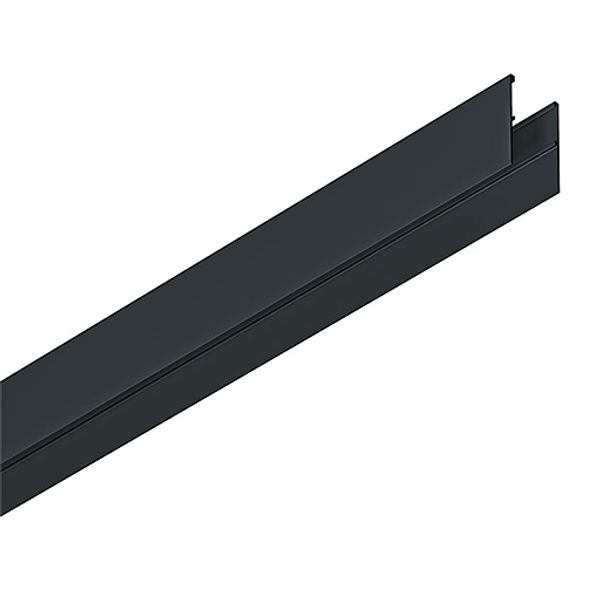

SUI 3PH/L3+DALI TRACK PROF-U 2X2M BK - profile image 1
SUI 3PH/L3+DALI TRACK PROF-U 2X2M BK - profile image 2
SUI 3PH/L3+DALI TRACK PROF-U 2X2M BK - profile image 3
SUI 3PH/L3+DALI TRACK PROF-U 2X2M BK - profile thumbnail 1
SUI 3PH/L3+DALI TRACK PROF-U 2X2M BK - profile thumbnail 2
SUI 3PH/L3+DALI TRACK PROF-U 2X2M BK - profile thumbnail 3
Zumtobel

profile

En stock: Non Stock fournisseur: Non Quantité minimale de commande: 1
Prix (hors TVA):
Prix sur demande
Ce prix est valable jusqu’à épuisement des stocks
EAN: 4053167363675
MPN: 60211023
Colis: 1
Délai de livraison estimé à notre entrepôt (environ): Sur demande

Technical Information

État de l’article Nouveau
Nom du fabricant SUI 3PH/L3+DALI TRACK PROF-U 2X2M BK - profile
Marque Zumtobel
Catégories Accessoires pour luminaires
Luminaires
Pays d’origine DE
Code du système harmonisé 7604 2990 00

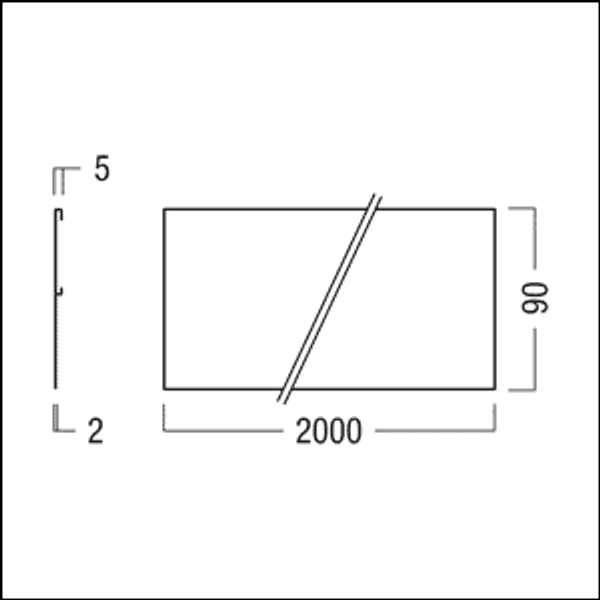

Largeur 5 mm
Hauteur 90 mm
Type d'accessoire/de pièce de rechange Couvercle
Longueur de la prise 2000 mm

Détails d’emballage

Niveau d’emballage 1 4053167363675, 4053167363675

Autres données techniques

Couleur Noir
Matériau Aluminium

Téléchargements

Déclaration RoHS Brochure de vente

Description

Profile (2 pieces), length: 2000mm; to cover the Zumtobel 3-phase/L3+DALI track and the SUPERSYSTEM integral collection track light inserts as U channel profile; the light inserts are flush-clad in the channel profile and enable a non-interrupted appearance; material: aluminium extrusion, black powder coated; designed to be cut to required length by customer; simple tool-free mounting with mounting clips to be ordered separately (maximally every 500mm); tool-free pendant mounting/surface-mounting of the SUPERSYSTEM INTEGRAL track channel profile is possible; dimensions: 2000x5x90 mm; weight: 1.75 kg; Note: for track systems with angle connectors, covering profiles with 45° mitre-cut angles must be ordered separately or made on location; end caps for closing the ends of the U channel profiles and blank inserts for closing the module openings are possible and must be ordered separately.
