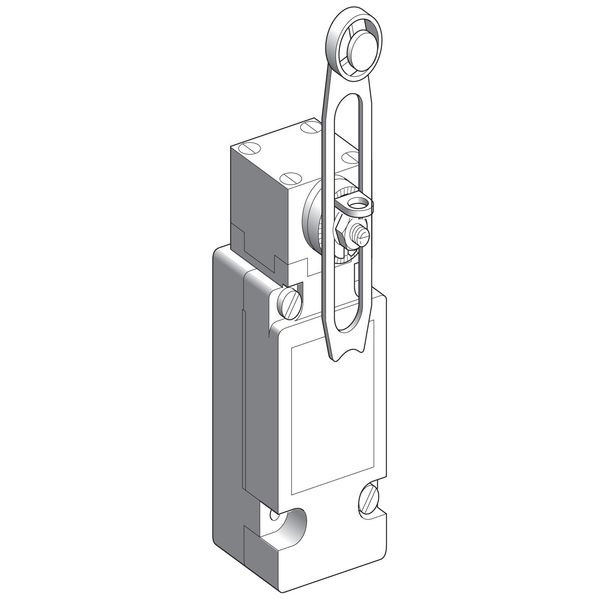

STANDSCHAK. METAAL EN50041
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Prix (hors TVA):
53,70 €
EAN: 3389110645910
MPN: XCKJ110541
Colis: 1
Délai de livraison estimé à notre entrepôt (environ):
8-10 weeks
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | STANDSCHAK. METAAL EN50041 |
| Marque | Telemecanique |
| Catégories |
Sensors
|
| Pays d’origine | FR |
| Code du système harmonisé | 8536 5080 00 |
| Switching function | Quick-break switch |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Rated operation current Ie at DC-13, 230 V | 0.27 A |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Other |
| With status indication | No |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry PG |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP66/IP67 |
| Forced opening | Yes |
| Number of safety auxiliary contacts | 0 |
| Type of control element | Roller lever |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at AC-15, 125 V | 0 A |
| Rated operation current Ie at AC-15, 24 V | 0 A |
| Rated operation current Ie at DC-13, 125 V | 0 A |
| Rated operation current Ie at DC-13, 24 V | 0 A |
| Width sensor | 43 mm |
| Diameter sensor | 0 mm |
| Height of sensor | 84 mm |
| Length of sensor | 36 mm |
| Switching function latching | No |
| Ambient temperature during operating | -25-70 °C |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 1 |
| Alignment of the control element | Other |
Détails d’emballage
| Niveau d’emballage 1 | 3389110645910 |
