Safety luminaire

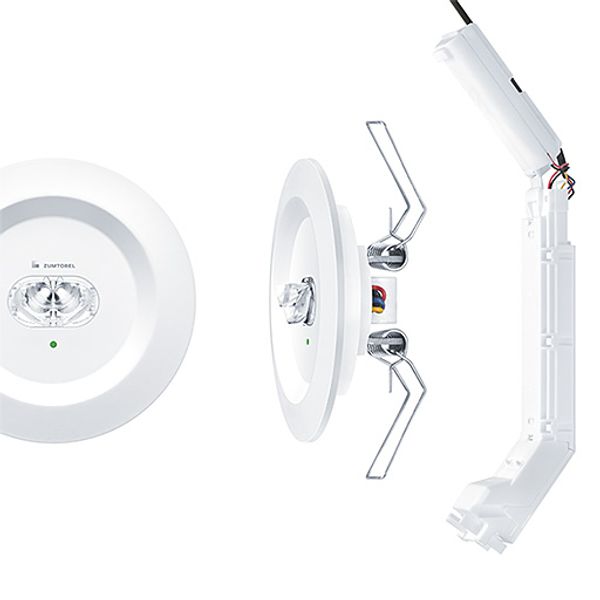

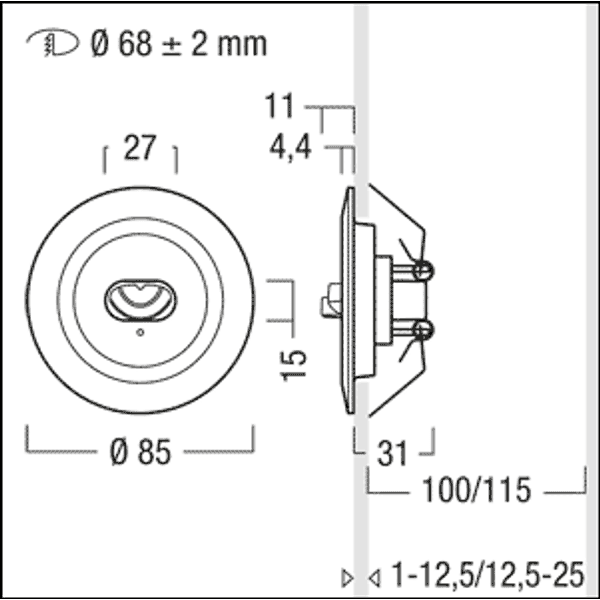

LED emergency luminaire for wall-mounted escape route lighting with min. 1 lux compliant to EN 1838; Room height 2.2 to 8 m; 2 high power LEDs, neutral white 4,000 K; lens made of polycarbonate; optimum thermal management via heat sink; Wall recessed luminaire for 68 mm wall cut-out and wall thicknesses of 1 - 25 mm; tool-free rapid luminaire installation through specially shaped retaining springs; tool-free replacement of battery and control unit; Cover ring diecast aluminium, powder-coated; housing colour white (close to RAL9016); Polypropylene (PP) gearbox for installation in ceiling recess; Luminaire with local battery supply for 8 h emergency lighting in maintained or non-maintained mode, with automatic test (auto-test) via the luminaire, optional central monitoring via DALI, display of luminaire status via status LED; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; Maintained and non-maintained mode: +5 °C to +35 °C; power supply: 220-240 V AC (+/- 10 %), 50-60 Hz; Luminaire input power: 5.5 W (with battery fast-charging in maintained mode), typical connected load (without battery charging): 3 W in maintained mode / 1.1 W in non-maintained mode; Non-maintained and maintained mode settable via jumper and NFC interface; IP20; SC1; Luminaire wired with halogen-free leads. Supply line not halogen-free, ballproof; Plug-in terminals for through-wiring up to 2.5 mm²; Impact strength: IK04; Dimensions: Ø85 x 4 mm; weight: 0.5 kg; Luminaire with D symbol (for use in environments in which no unusual accumulation of dust is expected) Robust, integrated battery with 3-year warranty. Valid according to terms of the manufacturer's warranty, available at https://www.zumtobel.com/media/downloads/Garantiebedingungen_EN.pdf ; Battery warranty invalid if installation takes place three (3) months after delivery EXW (Incoterms 2010)
