Post-top luminaires Lumega IQ 90 CLO (normal) Lens Grey ET 122W 16500lm 70 asymmetric wide (AB7L) IP66 IK08 5 SDCM 7211151

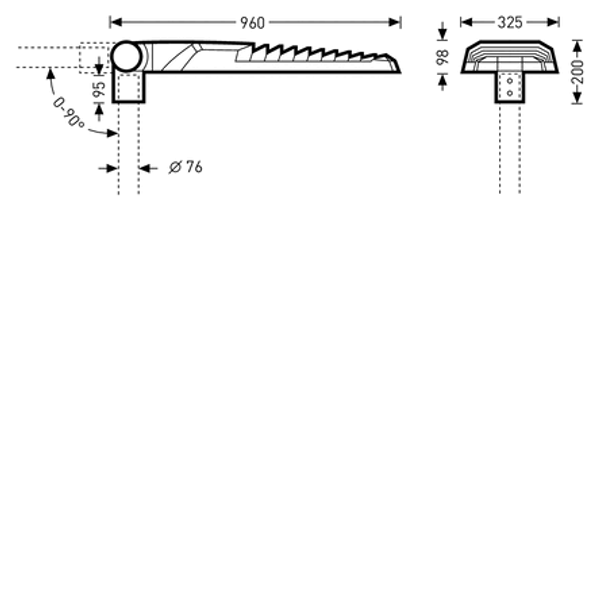

LED post-top and bracket-mounted luminaire. Construction size IQ 90 (960 x 325 mm). With an intelligent label for quick access to luminaire information by means of QR code. With SLR (Smart Lighting Ready) equipment for retrospective integration of components for light management systems. The standardised Zhaga-compliant base is attached to the lower cover. The luminaire is designed for the D4i standard and Zhaga/D4i certified. Post-top and bracket-mounted on or to post spigot Ø 76 mm. Inclination angle of 0° to 90°, can be set in 5° steps, scaled. Simple and rapid conversion from post-top to bracket-mounted luminaire via one screw accessible from outside.. Mast mounting via two stainless steel fixing screws in accordance with EN 60598-2-3. Also suitable for mounting to masts with spigot Ø 42, 48 and 60 mm via reduction pieces to be ordered separately. Passender Mast auf Anfrage. As MLT version (Multi-Lens Technology), consisting of highly efficient UV and temperature-resistant lens systems in 4-fold configurations. With asymmetric wide light distribution. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Retrofitting a rear / side shield is possible as an accessory to be ordered separately. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). Luminaire luminous flux 16500 lm, connected load 116 W, maximum luminous efficiency of luminaire 142 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 35 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium. With closed side contour. Luminaire body (main colour) and swivel unit (additional colour) in contrasting colours. Primary color anthracite (DB 703), additional color silver-grey (RAL 9006). With metal effect, highly weather resistant Sea weather-suitable coating on request. Swivel unit silver-grey offset, similar to RAL 9006, highly weather resistant, powder-coated. Cover of heat-treated non-laminated safety glass, transmission value > 98 %, sealed in diecast frame, swung downwards and unhooked without tools. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK08. Mast available upon request. Windage area fw 0,100 m2. Weight: 21,6 kg. With connected mains cable. Cable length 12 m. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
