Post-top luminaires 987 CLO (normal) Lens Black ET 14W 1500lm 70 asymmetric wide (AB2L) IP23 IK04 5 SDCM 6729040

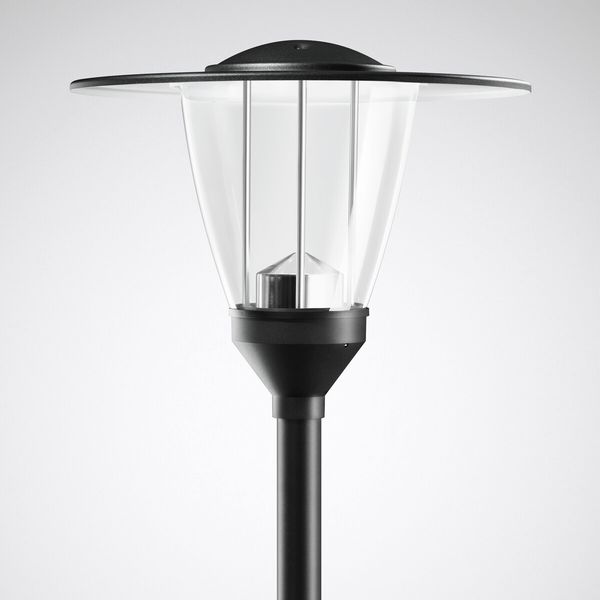

Decorative LED classic conical lantern for post-top mounting. With an intelligent label for quick access to luminaire information by means of QR code. For post spigot Ø 76 mm. Also suitable for mounting to posts with spigot Ø 60 mm via reduction pieces to be ordered separately. Passender Mast auf Anfrage. Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide light distribution. Retrofitting a rear / side shield is possible as an accessory to be ordered separately. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). LED system consisting of 2 LED modules. Luminaire luminous flux 1500 lm, connected load 13,5 W, maximum luminous efficiency of luminaire 111 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Versions with 3-level switch for adjusting various luminous flux options on request. Luminaire body of die-cast aluminium, luminaire canopy of corrosion-resistant aluminium, powder-coated highly weather resistant. Colour of outer luminaire body and luminaire top deep black, similar to RAL 9005. Luminaire top white powder-coated on inside. Sea weather-suitable coating on request. Cylindrical cover of impact-resistant PMMA, clear. Luminaire cover in lock-in service position can be pushed upwards. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP23, Protection rating of lamp compartment: IP65. impact resistance level in accordance with IEC 62262: IK04. Protection rating of lamp compartment: IP65. Mast available upon request. Windage area fw 0,470 m2. Weight: 10,9 kg. With connected 6,000 mm connection cable. With insulated terminal point for earth conductor. With electronic control gear unit, switchable The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). With connected 6,000 mm connection cable. With insulated terminal point for earth conductor. Electrical block contains all electric components, can be replaced without tools. Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
