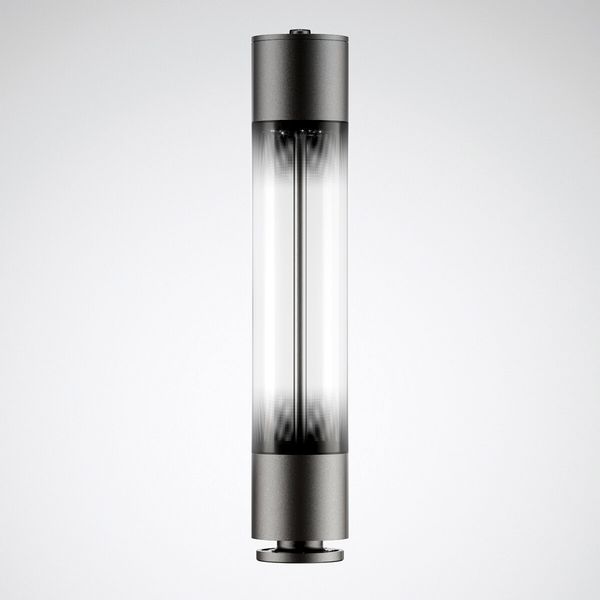

Pillar luminaires CS19 CLO (normal) Lens Anthracite ET 42W 5100lm 70 asymmetric wide (AB2L) IP65 IK05 5 SDCM 8427840

Luminaire head smart module combination of the modular, decorative LED light column system. Version with printed PMMA diffuser. The column system is designed for applications in areas with terrain category 1, up to wind zone 4. For post-top mounting onto compatible system supporting column. Compatible system supporting column as separate unit in various lengths, or alternatively available with baseplate or underground support. The steel supporting columns have a diameter of 193,7 mm. Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide light distribution. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). Luminaire luminous flux 5100 lm, connected load 40 W, maximum luminous efficiency of luminaire 128 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium Ø 193,7 mm. Colour anthracite (DB 703). Sea weather-suitable coating on request. Luminaire height 1564 mm, Luminaire diameter Ø 193,7 mm. Other colours and anti-graffiti coating on request. Cover cylinder of PMMA, clear. Luminaire body can be steplessly rotated through 360 °. There are no visible screws in the connection area between supporting column and luminaire head. A design gap visually emphasises the modular character of the light column system. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK05. Windage area fw 0,300 m2. Weight: 34,2 kg. Wired ready for connection with freely suspended electrical mains cable. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
