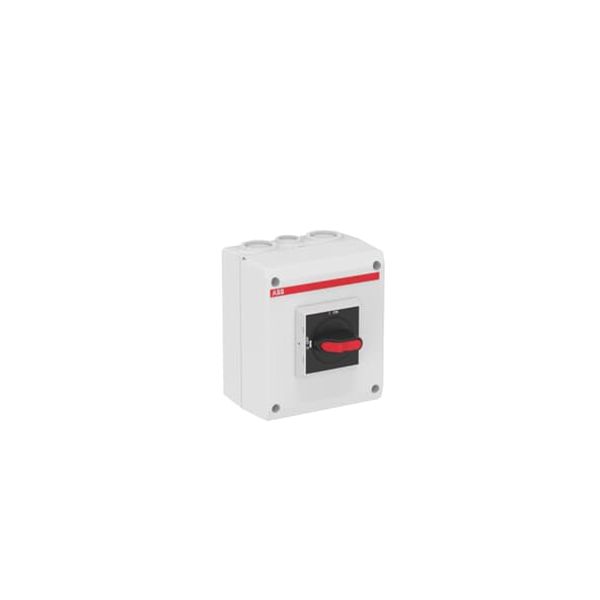

OTP16TL3M Safety switch image 1
OTP16TL3M Safety switch image 2
OTP16TL3M Safety switch thumbnail 1
OTP16TL3M Safety switch thumbnail 2

OTP16TL3M Safety switch

En stock: Non Stock fournisseur: Non Quantité minimale de commande: 1
Prix (hors TVA):
66,84 € par pièce
Ce prix est valable jusqu’au 31.12.25
EAN: 6417019197883
MPN: 1SCA022608R3040
Colis: 1
Délai de livraison estimé à notre entrepôt (environ): Sur demande

Technical Information

État de l’article Nouveau
Nom du fabricant OTP16TL3M Safety switch
Marque ABB
Catégories Switch Disconnectors
Pays d’origine FI

Détails d’emballage

Niveau d’emballage 1 6417019197883

Description

Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The handle is lockable in ON and OFF position. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
