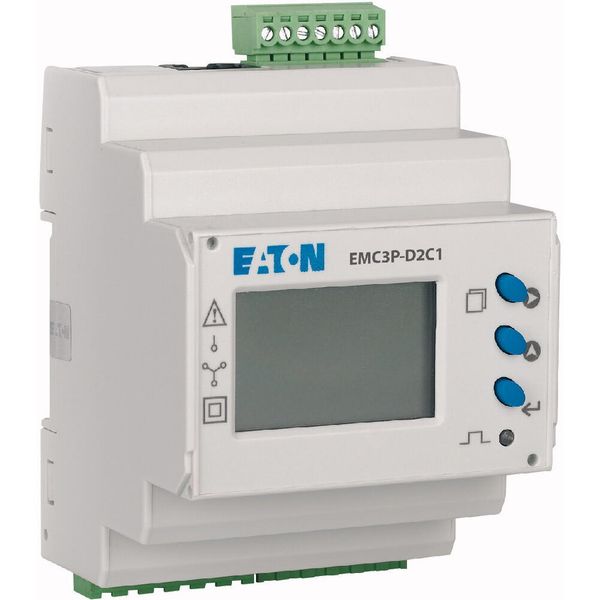

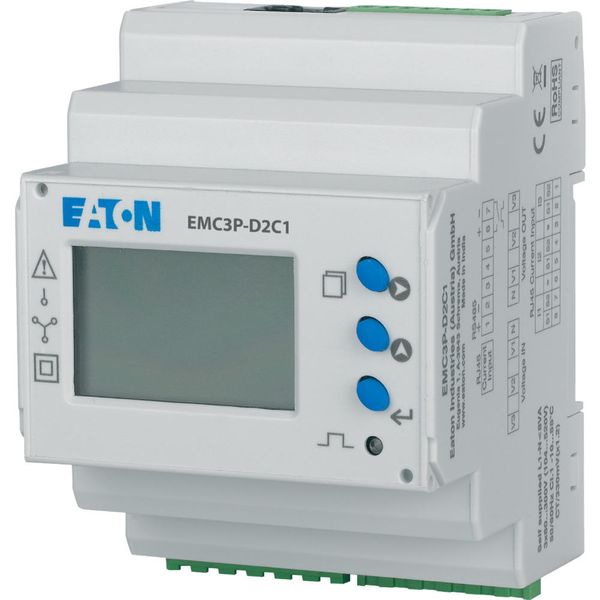

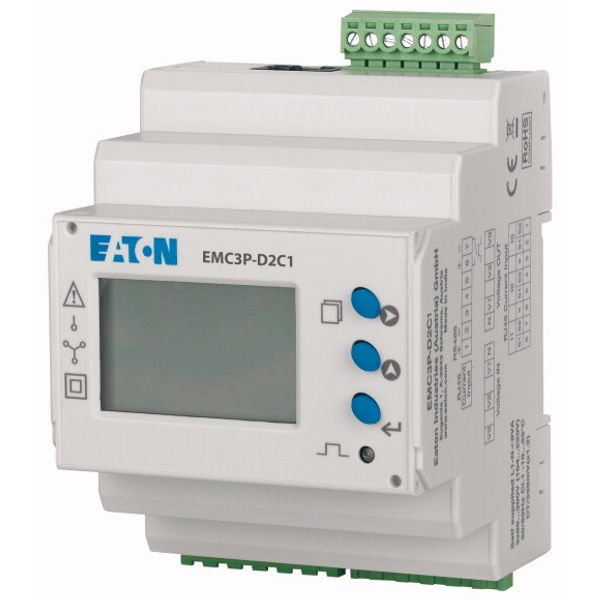

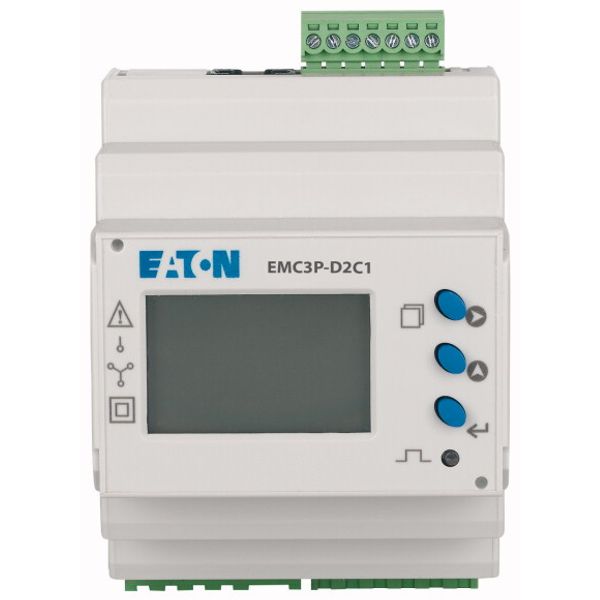

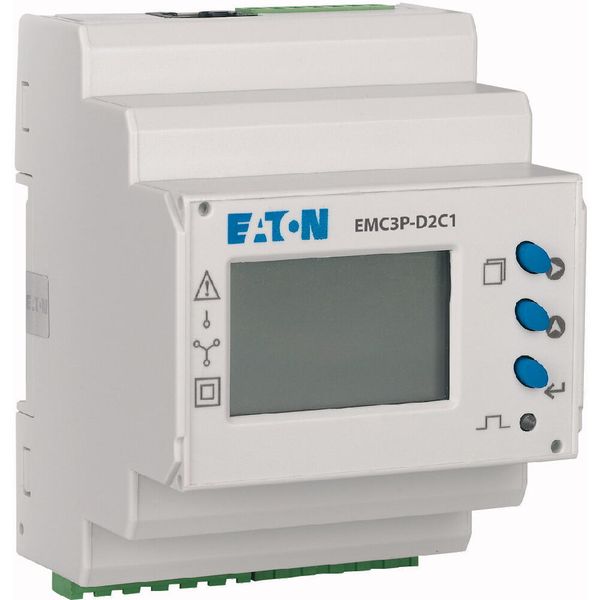

Multifunction Energy Meter - MID Certified
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Prix (hors TVA):
207,20 €
EAN: 9010238044272
MPN: EMC3P-D2C1
Colis: 1
Boîte: 5
Délai de livraison estimé à notre entrepôt (environ):
4-6 weeks
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | Multifunction Energy Meter - MID Certified |
| Marque | EATON |
| Catégories |
Electric meters
|
| Pays d’origine | IN |
| Code du système harmonisé | 9028 3019 00 |
| Mounting method | DRA (DIN-rail adapter) |
| Width | 70 mm |
| Height | 90 mm |
| Depth | 66.3 mm |
| Frequency | 47-63 Hz |
| Max. current (Imax) | 6000 A |
| Width in number of modular spacings | 4 |
| Degree of protection (IP) | IP51 |
| Pulse rate | 0 Imp/kWh (kvarh) |
| Pole type | Three conductor/four conductor |
| Nominal voltage (Un) N-L | 230 V |
| Nominal current (In) | 6000 A |
Détails d’emballage
| Niveau d’emballage 1 | 9010238044272 |
| Niveau d’emballage 2 | 9010238044814 |
Autres données techniques
| Model | Measurement transformer |
| Suitable for | Purchase/supply |
| Type of indication | Digital |
| Number of positions total (counter) | 18 |
| Type of meter | Electronic |
| Type of interface | Modbus |
| Energy type | Effective power and blind power |
| Escapement mechanism | No |
| Calibrated | No |
| Approval | Measuring Instruments Directive |
| Pulse output | Electrical |
| Accuracy class | A |
| Measurement type load profile | No |
| EEC40 signature | No |
| With lock code | Yes |
| Nominal voltage (Un) L-L | 400 V |
