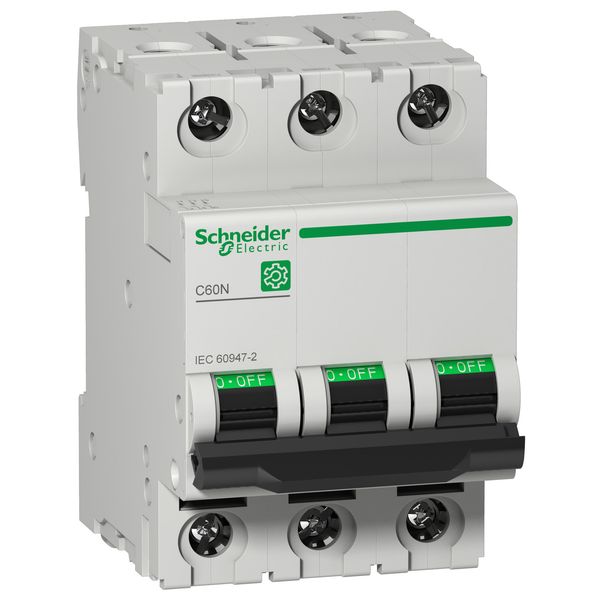

MULTI9 OEM C60N 3P 32A C 10KA
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | Miniature circuit breaker Multi9 C60N 3P 32A C-curve 10kA 415V |
| Marque | Schneider Electric |
| Catégories |
Disjoncteurs 32A
|
| Pays d’origine* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Code du système harmonisé | 8536 2010 00 |
| Courant nominal | 32 A |
| Tension nominale | 415 V |
| Caractéristique de déclenchement | C |
| Largeur en nombre d'espacements modulaires | 3 |
| Nombre de pôles (total) | 3 |
| Pouvoir de coupure assigné en cas de court-circuit Icn selon EN 60898 à 230 V | 0 kA |
Détails d’emballage
| Niveau d’emballage 1 | 3606480576416 |
Autres données techniques
| Type de tension | AC/DC |
| Profondeur d'encastrement | 44 mm |
| Fréquence | 50-60 Hz |
| Tension nominale d'isolation Ui | 500 V |
| Classe de limitation de courant | 3 |
| Catégorie de surtension | 4 |
| Degré de pollution | 3 |
| Degré de protection (IP) | IP20 |
| Nombre de pôles protégés | 3 |
| Conducteur neutre à commutation simultanée | No |
| Section du conducteur raccordable à âme pleine | 1.5-35 mm² |
| Section des conducteurs connectables multi-câblés | 1.5-35 mm² |
| Température ambiante pendant le fonctionnement | -30-70 °C |
| Équipement supplémentaire possible | Yes |
| Pouvoir de coupure assigné en cas de court-circuit Icn selon EN 60898 à 400 V | 0 kA |
| Pouvoir de coupure assigné en cas de court-circuit Icu selon IEC 60947-2 à 230 V | 20 kA |
| Pouvoir de coupure assigné en court-circuit Icu selon IEC 60947-2 à 400 V | 10 kA |
| Tension nominale de tenue aux chocs Uimp | 6 kV |
Description
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 32A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. The weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
