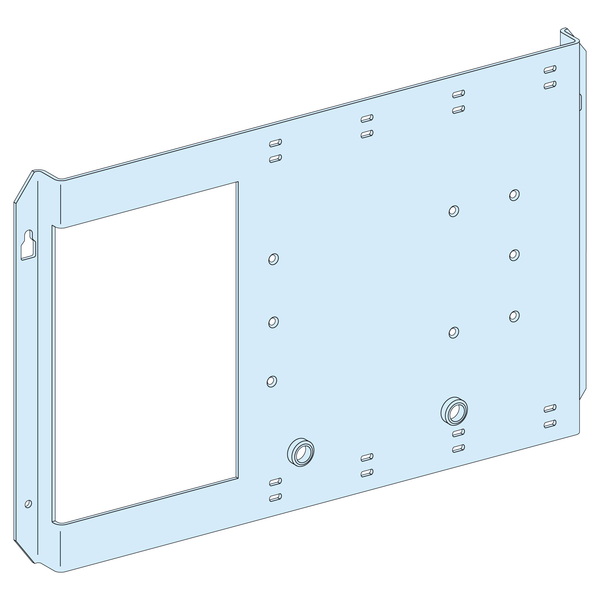

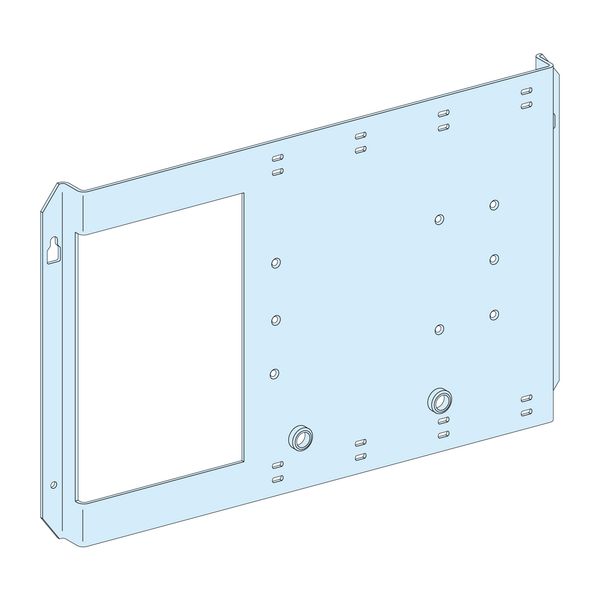

MOUNTING PLATE NSX/CVS/INS 630 HZ. FIX. TOGGLE image 1
MD01 image 2
MOUNTING PLATE NSX/CVS/INS 630 HZ. FIX. TOGGLE thumbnail 1
MD01 thumbnail 2
Schneider Electric

MOUNTING PLATE NSX/CVS/INS 630 HZ. FIX. TOGGLE

Commande uniquement
Prix (hors TVA):
62,95 €
Ce prix est valable jusqu’au 24.12.26
EAN: 3303430030706
MPN: 03070
Colis: 1
Boîte: 8
Palette: 96
Délai de livraison estimé à notre entrepôt (environ): 4-6 weeks

Technical Information

État de l’article Nouveau
Nom du fabricant MOUNTING PLATE NSX/CVS/INS 630 HZ. FIX. TOGGLE
Marque Schneider Electric
Catégories Mounting Сomponents
Pays d’origine* IT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Protection de surface Revêtement en poudre
Matériau Acier inoxydable

Détails d’emballage

Niveau d’emballage 1 3303430030706
Niveau d’emballage 2 3303430030703
Niveau d’emballage 3 3303430030705

Autres données techniques

Largeur 600 mm
Hauteur 250 mm
Perforé No

Téléchargements

EPB (Code de pratique environnementale)

Description

Mounting plate for Prisma. It is compatibility with Prisma G. It provides electrophoresis treatment and hot-polymerised polyester epoxy powder protective treatment. It could be used as installation accessory for Easypact and Compact with toggle/direct front rotary handle control. It could be used to 1 x 3P or 1 x 4P, fixed CVS/EZC/INS/INV/NSX by horizontal installation. It has matt or smooth surface finish and white (RAL 9001) colour. It is suitbale for 6/9 50-mm vertical modules, direct with long terminal shield in the enclosure or enclosure + duct. Need additional plate (2M high) when installation of device is in horizontal. It is certified by ASEFA. It is compliant with both IEC 61439-2. It is also compliant with Green Premium (RoHS/REACH).
