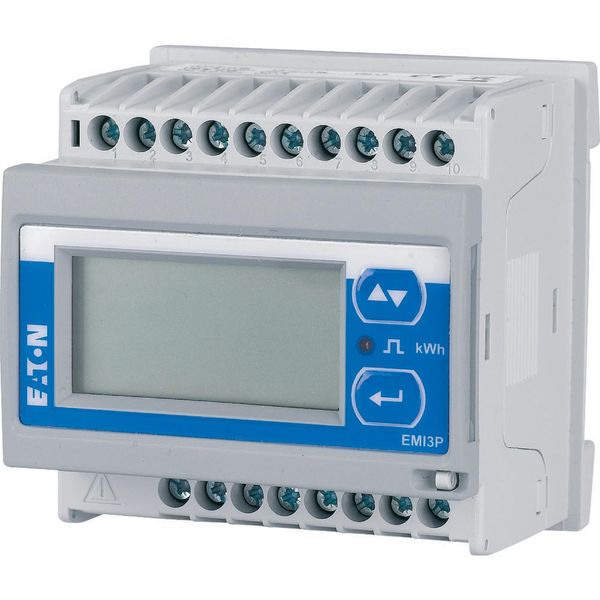

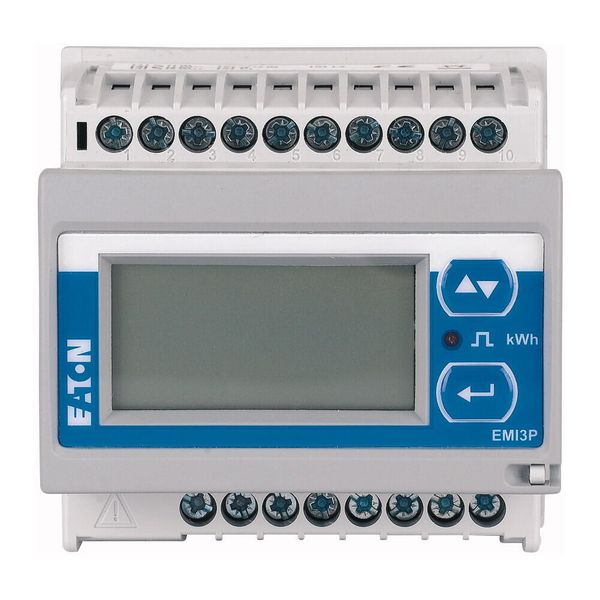

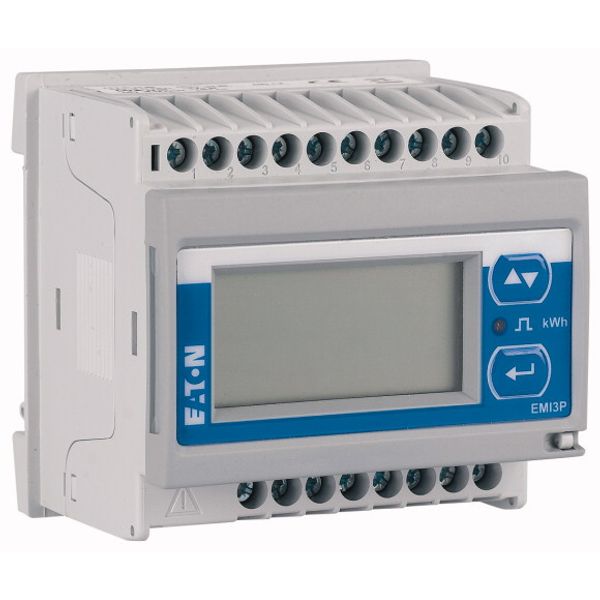

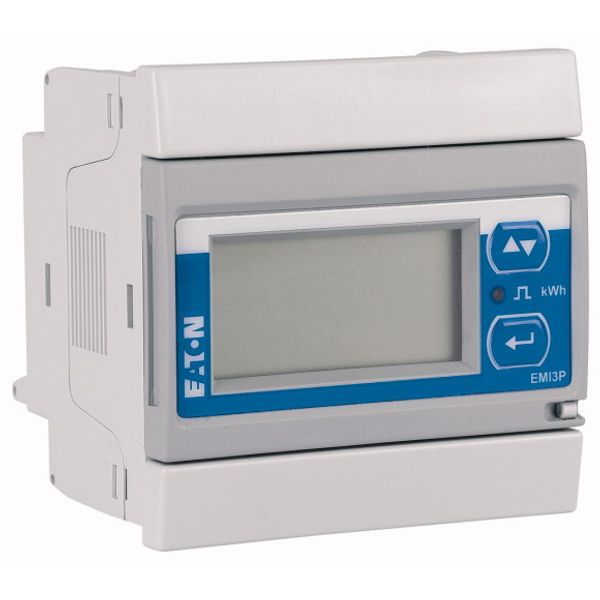

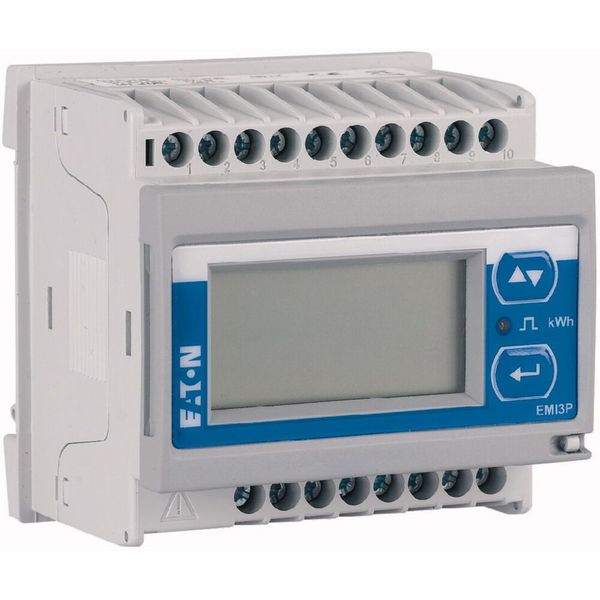

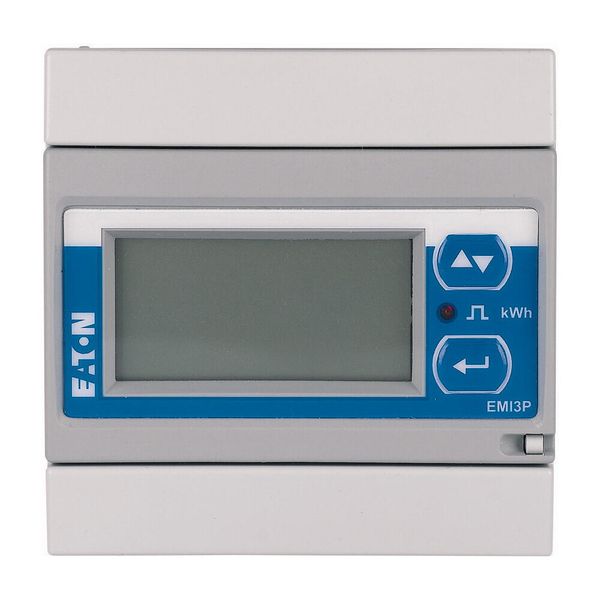

Meter, 3P, DIN/Panel, ModB, Rog
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Prix (hors TVA):
456,16 €
EAN: 9010238043473
MPN: EMI3P-Y2R0
Colis: 1
Boîte: 30
Délai de livraison estimé à notre entrepôt (environ):
4-6 weeks
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | Meter, 3P, DIN/Panel, ModB, Rog |
| Marque | EATON |
| Catégories |
Electric meters
|
| Pays d’origine | IT |
| Code du système harmonisé | 9031 8080 00 |
| Mounting method | Front mounting |
| Width | 71.7 mm |
| Height | 71.7 mm |
| Depth | 64.6 mm |
| Frequency | 45-65 Hz |
| Max. current (Imax) | 0 A |
| Width in number of modular spacings | 4 |
| Degree of protection (IP) | IP40 |
| Pulse rate | 0.1-100 Imp/kWh (kvarh) |
| Pole type | Three conductor/four conductor |
| Nominal voltage (Un) N-L | 160-240 V |
| Nominal current (In) | 0 A |
Détails d’emballage
| Niveau d’emballage 1 | 9010238043473 |
| Niveau d’emballage 2 | 9010238044036 |
Autres données techniques
| Model | Measurement transformer |
| Suitable for | Purchase/supply |
| Type of indication | Digital |
| Number of positions total (counter) | 7 |
| Type of meter | Electronic |
| Type of interface | Modbus |
| Energy type | Effective power and blind power |
| Escapement mechanism | No |
| Calibrated | No |
| Pulse output | Electrical |
| Pulse type | S0 |
| Accuracy class | B |
| Measurement type load profile | No |
| EEC40 signature | No |
| With lock code | Yes |
| Nominal voltage (Un) L-L | 277-415 V |
| Degree of protection (NEMA) | 1 |
