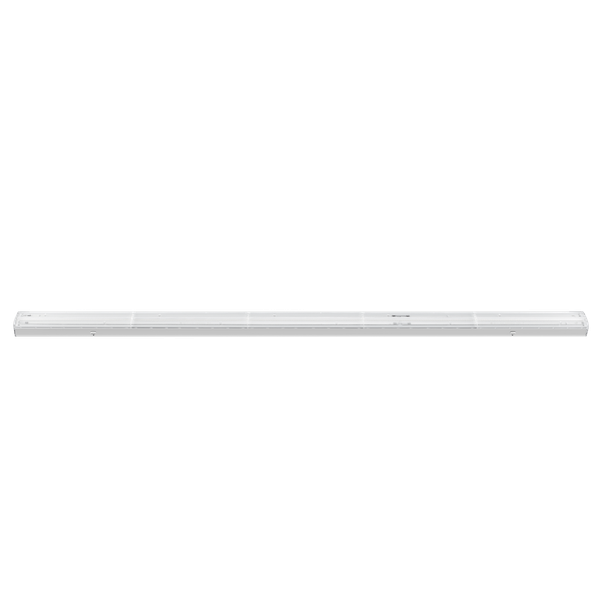

LEDTrunking Module L15-50W-4000-BW-DALI
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Non disponible
Délai de livraison estimé à notre entrepôt (environ):
Sur demande
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | LEDTrunking Module L15-50W-4000-BW-DALI |
| Marque | Opple |
| Pays d’origine | CN |
| Code du système harmonisé | 9405 4239 00 |
| Width | 77.7 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 1498.5 mm |
| Height/depth | 66.5 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK00 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 50 W |
| Rated luminous flux according to IEC 62722-2-1 | 8000 lm |
| Luminaire efficacy | 160 lm/W |
Détails d’emballage
| Niveau d’emballage 1 | 6945730405777 |
Autres données techniques
| Protection class | I |
| Lamp holder | None |
| Voltage type | AC/DC |
| Type of grid | Other |
| Type of control gear | LED operating device current-controlled |
| Housing material | Steel |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Other |
| Emergency power supply integrated | No |
| With light source | Yes |
| With control gear | Yes |
| Nominal current | 600 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Photobiological safety according to EN 62471 | Other |
| Degree of protection (NEMA) | Other |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Focal lens |
| Dimming DSI | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Surface protection housing | Other |
| Power factor | 0.9 |
