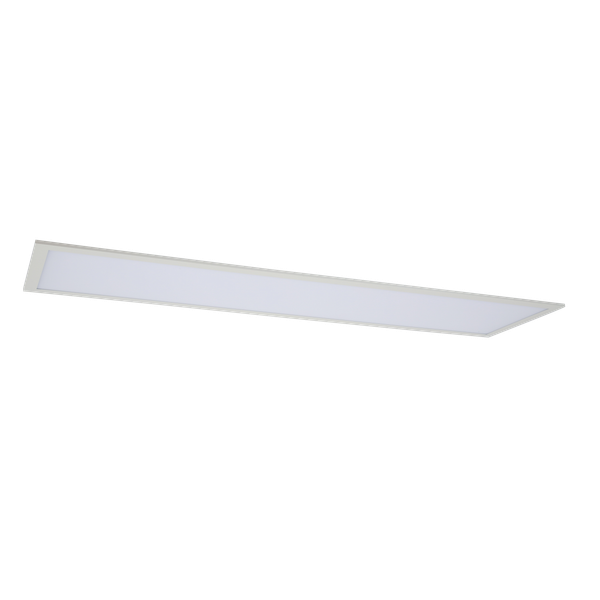

LEDPanelRc-S-E2 Re295-34W-3000-WH-U22

LEDPanelRc-S-E2 Re295-34W-3000-WH-U22 image 1

LEDPanelRc-S-E2 Re295-34W-3000-WH-U22 image 2

LEDPanelRc-S-E2 Re295-34W-3000-WH-U22 image 3

LEDPanelRc-S-E2 Re295-34W-3000-WH-U22 image 4

LEDPanelRc-S-E2 Re295-34W-3000-WH-U22

Name: LEDPanelRc-S-E2 Re295-34W-3000-WH-U22
Brand: Opple
Availability: PreOrder

En stock: Non Stock fournisseur: Non Quantité minimale de commande: 1 Non disponible

Délai de livraison estimé à notre entrepôt (environ): Sur demande

Technical Information

État de l’article	Nouveau
Nom du fabricant	LEDPanelRc-S-E2 Re295-34W-3000-WH-U22
Marque	Opple
Pays d’origine	CN
Code du système harmonisé	9405 1190 00
Width	295 mm
Colour housing	White
Colour rendering index CRI	80-89
Length	1195 mm
Height/depth	8.5 mm
Lamp type	LED not exchangeable
Impact strength	IK02
Nominal voltage	220-240 V
Degree of protection (IP)	IP20
Beam angle	Extreme wide beam >80°
Colour temperature	3000 K
Max. system power	34 W
Rated luminous flux according to IEC 62722-2-1	3700 lm
Luminaire efficacy	110 lm/W

Détails d’emballage

Niveau d’emballage 1

6945730453815

Autres données techniques

Protection class	II
Connection type	Free conductor end
Voltage type	AC
With movement sensor	No
Type of grid	None
Type of control gear	LED operating device current-controlled
With light sensor	No
Suitable for suspended mounting	Yes
Housing material	Aluminium
Suitable for light line configuration	No
Suitable for emergency lighting	No
Light outlet	Direct
Light sharing	Symmetric
Material cover	Plastic, opal
Emergency power supply integrated	No
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Covering of the luminaire with thermally insulating material possible	No
Suitable for built-in mounting	Yes
With control gear	Yes
Suitable for surface mounting	Yes
Nominal current	860 mA
Colour of light	White
With air slots	No
Constant light output (CLO)	No
IFTTT support available	No
Type of wiring	Ending
Rated life time L70/B50 at 25 °C	50000 h
Colour consistency (McAdam ellipse)	SDCM6
Photobiological safety according to EN 62471	RG0
Rated ambient temperature according to IEC62722-2-1	-10-40 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
No dim function	Yes
Light distributor	Diffuser lens/optic/panel
Dimming DSI	No
Unified Glare Ratio (UGR)	22
Operation by Bluetooth	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	18
Max. number of luminaires per miniature circuit breaker B16	11
Dimming DALI-2	No
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	Yes
Suitable for ceiling mounting	Yes
Power factor	0.9
