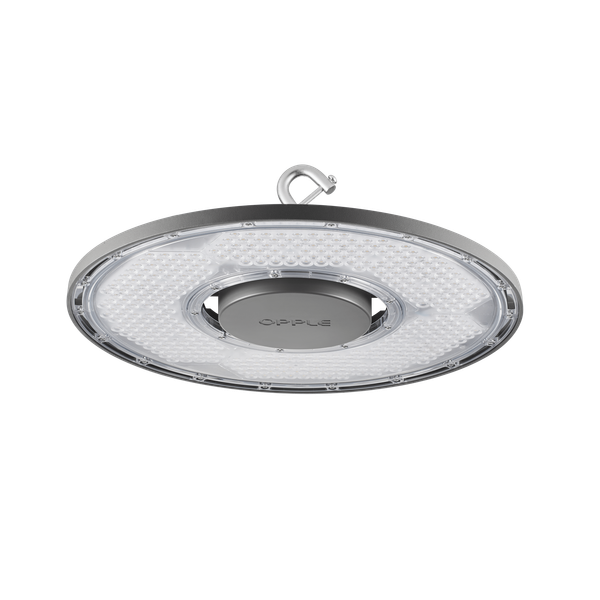

LEDHighbay-P4 220W-5700-N-BLE
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Non disponible
Délai de livraison estimé à notre entrepôt (environ):
Sur demande
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | LEDHighbay-P4 220W-5700-N-BLE |
| Marque | Opple |
| Pays d’origine | CN |
| Code du système harmonisé | 9405 1190 00 |
| Width | 408 mm |
| Colour rendering index CRI | 80-89 |
| Length | 408 mm |
| Height/depth | 82 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 5700 K |
| Max. system power | 220 W |
| Rated luminous flux according to IEC 62722-2-1 | 32000 lm |
| Luminaire efficacy | 145 lm/W |
Détails d’emballage
| Niveau d’emballage 1 | 6941497724830 |
Autres données techniques
| Mounting method | Pendant |
| Protection class | I |
| Outer diameter | 408 mm |
| Reflector | None |
| Lamp holder | None |
| Colour housing | Grey |
| Voltage type | AC/DC |
| Type of control gear | LED operating device current-controlled |
| Ball-proof | Yes |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With protective cover | Yes |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| With control gear | Yes |
| Nominal current | 820 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Rated ambient temperature according to IEC62722-2-1 | -30-50 °C |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Focal lens |
| Dimming DSI | No |
| Suitable for auxiliary lamp | No |
| Max. number of luminaires per miniature circuit breaker C16 | 5 |
| Max. number of luminaires per miniature circuit breaker B16 | 3 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
