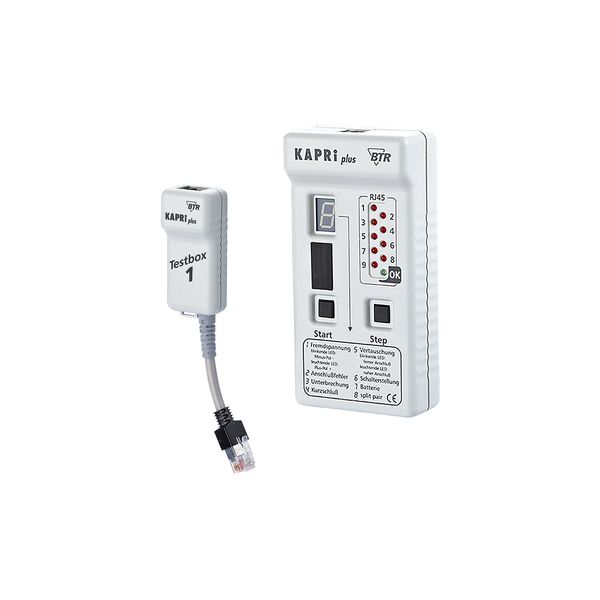

KAPRi plus cable and installation tester
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Prix (hors TVA):
237,49 €
EAN: 4250184102465
MPN: 130670-E
Colis: 1
Délai de livraison estimé à notre entrepôt (environ):
4-6 weeks
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | KAPRi plus cable and installation tester |
| Marque | METZ CONNECT |
| Catégories |
Automatics and control
Measuring instruments |
| Pays d’origine | DE |
| Code du système harmonisé | 9030 4000 00 |
| Modèle | Testeur de câble à paires torsadées |
| Convient pour | Paire torsadée |
| Avec interface PC/imprimante | No |
| Type d'indication | LED/LCD |
| Mémoire des valeurs mesurées | No |
| Possibilité de connecter un appareil supplémentaire | No |
| Convient pour la mesure des protocoles de réseau | Yes |
| Avec tête de mesure | Yes |
Détails d’emballage
| Niveau d’emballage 1 | 4250184102465, 4250184102465 |
Description
Detection and indication of the most frequent installation faults: short-circuit, wire interruption, wire reversal, line reversal, split pair, indication of external voltage with polarity for each wire, line identification by identifying up to nine test box numbers, detection and indication of incorrectly adjusted pin assignment, fault display for each individual wire by means of nine red LED, green LED if there is not any fault, clear indication of the type of error on a 7-segment display, low voltage display for battery, automatic test, easy handling and interpretation of test results, one key for switching on and off and starting test, quick test, approx. 3 seconds, fault list query for multiple faults by pressing separate key, nine switches to adjust the pin assignment, 9-wire connection line to test up to 8-wire data connection lines with shield, connection by means of RJ45 jacks, this also allows testing patch cables, automatic switch-off after 30 seconds, protected against external voltage, test function to detect loose contacts, reverse battery protection, low current consumption for long battery life, included in the delivery: main terminal, test box 1, patch cable, 9 V battery and storage bag
