Kaedra - versatile for power outlet - 1 x 12+1 modules - 340 x 335 mm
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Prix (hors TVA):
53,72 €
EAN: 3303430131915
MPN: 13191
Colis: 1
Palette: 36
Délai de livraison estimé à notre entrepôt (environ):
Sur demande
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | Kaedra - versatile for power outlet - 1 x 12+1 modules - 340 x 335 mm |
| Marque | Schneider Electric |
| Catégories |
Small Distribution Boards
|
| Pays d’origine | IT |
| Méthode de montage | Montage en surface (plâtre) |
| Matériau du boîtier | Plastique |
| Degré de protection (IP) | IP65 |
| Modèle de couvercle | Fermée |
Détails d’emballage
| Niveau d’emballage 1 | 3303430131915 |
| Niveau d’emballage 2 | 3303430131915 |
Autres données techniques
| Couleur | Gris |
| Largeur | 340 mm |
| Hauteur | 335 mm |
| Profondeur | 160 mm |
| Numéro RAL | 7035 |
| Avec plaque de montage | No |
| Profondeur d'encastrement | 0 mm |
| Nombre de rangées | 1 |
| Hauteur d'encastrement | 0 mm |
| Type de couvercle | Porte |
| Largeur encastrée | 0 mm |
| Version CEM | No |
| Possibilité d'extension | Yes |
| Profondeur interne | 91 mm |
| Rail DIN | Yes |
| Largeur en nombre d'espacements modulaires | 12 |
| Type de fermeture | Cylindre |
| Couvercle/porte transparent(e) | Yes |
| Avec serrure | Yes |
Téléchargements
Description

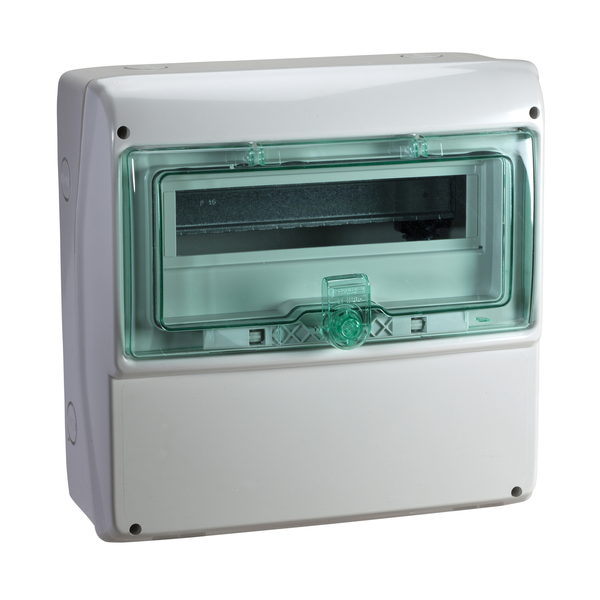

This Kaedra weatherproof enclosure is a surface mounted versatile enclosure for power outlet. It can accomodate all types of modular switchgear. There is a zone for industrial or domestic power outlets, buttons or indicator lights. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door for modular devices. The colour of enclosure is light grey (RAL 7035). It is intended for new or renovated installation in residential. The cables can enter by the top side of the enclosure via 3 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail, 2 plates for 65x85mm power outlets and 1 plate for push-button control. It comes with 1 terminal block. The terminal blocks have 4 outgoers (2x10mm² + 2x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 23W. The In rated current is up to 63A. This product complies with IEC 61439-1 and 3, IEC 60670-1 and 24 standard. The dimensions are (W) 340mm x (H) 335mm x (D) 160mm. The product weight is 2kg. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is halogen free. The IK degree of protection is IK09. The operating temperature is -25-40 °C.
