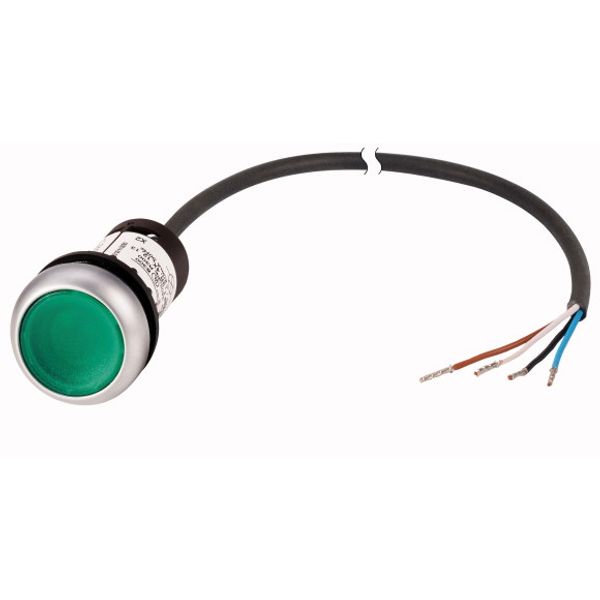

C22-DRL-G-K10-24-P62 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m image 1

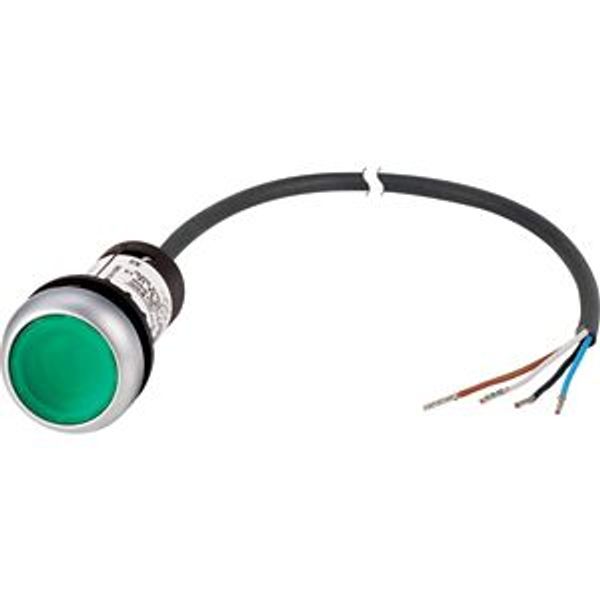

C22-DRL-G-K10-24-P62 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m image 2
C22-DRL-G-K10-24-P62 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m image 3
C22-DRL-G-K10-24-P62 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m image 4
C22-DRL-G-K10-24-P62 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m thumbnail 1
C22-DRL-G-K10-24-P62 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m thumbnail 2
C22-DRL-G-K10-24-P62 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m thumbnail 3
C22-DRL-G-K10-24-P62 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m thumbnail 4
EATON

Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m

Commande uniquement
Prix (hors TVA):
33,77 €
Ce prix est valable jusqu’au 30.06.26
EAN: 4015081810840
MPN: 185590
Colis: 1
Délai de livraison estimé à notre entrepôt (environ): 1-4 weeks

Technical Information

État de l’article Nouveau
Nom du fabricant C22-DRL-G-K10-24-P62 Illuminated pushbutton actuator, classic, flat, maintained, 1 N/O, green, 24 V AC/DC, cable (black) with non-terminated end, 4 pole, 1 m
Marque EATON
Catégories Push Buttons
Pays d’origine* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Code du système harmonisé 8536 5011 00
Bouton de couleur Vert
Nombre de positions de commande 1
Type de bouton Plat
Degré de protection (IP) IP67/IP69K

Détails d’emballage

Niveau d’emballage 1 4015081810840

Autres données techniques

Diamètre du trou 22.5 mm
Adapté à l'éclairage Yes
Ressort de rappel No
Couleur de l'anneau frontal Titane
Type de connexion électrique Câble
Largeur de l'ouverture 0 mm
Hauteur de l'ouverture 0 mm
Matériau de l'anneau frontal Plastique
Avec anneau frontal No
Transparent No
Type de construction de la lentille Rond
Tension d'alimentation de la lampe 24 V
Fonction de commutation à verrouillage No
Nombre de contacts comme contact normalement fermé 0
Nombre de contacts comme contact normalement ouvert 1
Nombre de contacts comme contact inverseur 0
Degré de protection (NEMA) 12

Description

Illuminated pushbutton actuator, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with non-terminated end, 4 pole, Cable Length: 1 m, Color LED: green, button plate: green, Button plate Blank, Rated operational voltage LED: 24 V AC/DC, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Standards: IEC/EN 60947-5-1, VDE 0660
