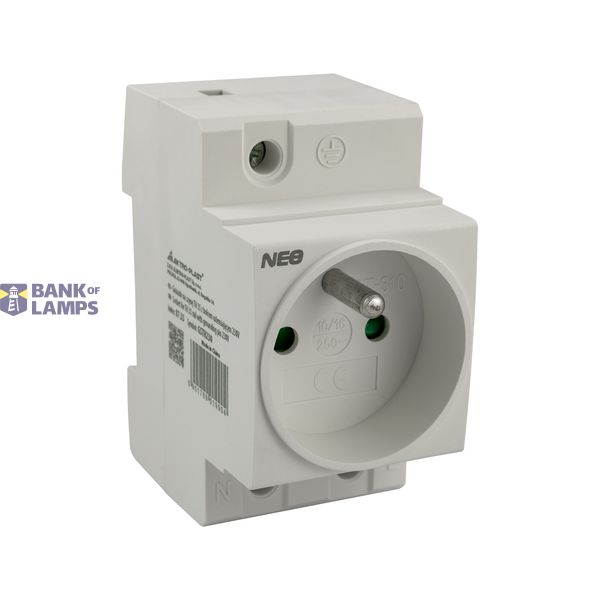

GSTH230 230V socket for TH rail with grounding pin 2P+Z
Commande uniquement
EAN: 5901769019904
MPN: 87.35
Colis: 1
Prix (hors TVA)
2,38 €
par unité
Quantité minimale de commande: 5
Délai de livraison estimé à notre entrepôt: 2-4 weeks
Prix valable jusqu’au 31.12.26 ou jusqu’à épuisement du stock
Informations techniques
| État de l’article | Nouveau |
| Nom du fabricant | GSTH230 230V socket for TH rail with grounding pin 2P+Z |
| Marque | Elektro-Plast |
| Catégories |
Prises modulaires sur rail DIN
|
| ETIM | EC001663 |
| Type de tension | AC |
| Courant nominal | 16 A |
| Tension nominale | 250 V |
| Avec protection renforcée des contacts | Oui |
| Degré de protection (IP) | IP20 |
Détails d’emballage
| Niveau d’emballage 1 | 5901769019904 |
Autres données techniques
| Modèle | Goupille de mise à la terre |
| Avec couvercle à charnière | Non |
| Profondeur d'encastrement | 65 mm |
| Nombre de prises de courant | 1 |
| Largeur en nombre d'espacements modulaires | 2.5 |
| Avec lampe de contrôle | Non |
| Nombre de broches actives (rondes) | 3 |
| Nombre de broches actives (plates) | 0 |
Description
The GSTH230 230V socket for TH rail with a 2P+Z grounding pin is a functional electrical device that allows for convenient connection of devices to the power supply in modular systems.
Product characteristics:
Intended use: For powering single-phase devices equipped with a plug, compliant with operating parameters.
Mounting: On a TH35/DIN rail, in accordance with modular standards.
Safety: Equipped with a grounding pin for increased safety. Technical Specifications:
Catalog Model: GSTH230
Catalog Number: 87.35
Rated Current: 16 A
Nominal Operating Voltage: 230 V
Frequency: 50/60 Hz
Rated Insulation Voltage (Ui): 500 V
Module Width: 45 mm (approx. 2.5 modules)
Connecting Cable Diameter: ≤6 mm²
Protection Class: IP20 (protection against solid objects >12.5 mm, no protection against moisture).
Operating Temperature: -5°C to +40°C
Standard Mounting: 35 mm TH/DIN Rail
Applications:
The GSTH230 socket is suitable for use in modular distribution boards in residential, office, and industrial buildings.
Power supply installations for service devices in distribution boards.
Solutions requiring easy access to the socket in electrical installations. Notes:
Environmental restrictions: This product is intended for use in enclosed, dry rooms with temperatures ranging from -5°C to +40°C.
Safety of use: It is recommended to use it in accordance with the manufacturer’s instructions and regulations regarding shock protection.
