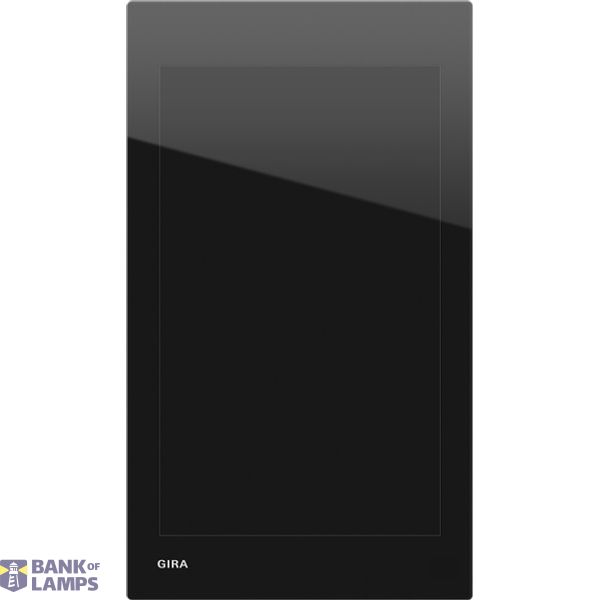

Gira G1 XS w/o WLAN Gira G1 black gl.

Gira G1 XS black glass without WLANFeatures:-A gesture-controlled multi-touch display is used for operation.-Connection and communication takes place via LAN.-Integrated speaker.-Integrated microphone with echo compensation.Potential applications and combinations-As a multi-functional room operating device, the Gira G1 XS offers the following functions or combinations of functions:-KNX room operating device-Video home station-Client for the following systems/servers: Gira X1 -Gira One-Integration of internet servicesProperties as a KNX room operating device-Intuitive user interface that can be adapted by the end user.-Switching and dimming (relative and absolute), dimming (incl. Dimming RGB, RGBW, and Tunable White), blind and roller shutter control, value transmitter, and scene auxiliary unit.-Status display, display of date and time, display of inside and outside temperature.-Up to 150 functions (six function folders or rooms with up to 25 functions each).-Up to 125 seven-day time clocks with 10 switching times each.-Room temperature controller in combination with the temperature sensor module (available as an optional extra), or KNX devices for room temperature measurement, e.g. touch sensor 3 Komfort.-Operating modes: Comfort, standby, night and frost or heat protection with their own respective set temperature (for heating and/or for cooling).-Operating modes can be adapted individually.-A heating clock as seven-day time clock with 28 switching times.-Room temperature controller auxiliary unit for controlling air conditioning systems (fan coil) in conjunction with a KNX gateway for air conditioning systems.-Supports KNX Data Secure and KNX IP Secure.Features as a video home station-Camera changeover: specific selection of connected colour cameras.-Controlling the door opener.-Switching the ringing tone on and off.-Ringtone can be selected from a choice of 10 melodies.Properties as a home station with SIP client-Client function for SIP third-party systems from e.g. Comelit, TCS, SCHÜCO DCS Touch, 2N.-SIP calls can be made directly or via a Registrar-64 internal calls possible e.g. to the concierge-Early Media support for video imageIntegration of internet services-Gira weather service: display of the weather forecast for up to five cities (internet connection required).The Gira G1 XS can also be used as a client for the following systems/servers:-Gira X1 Client-Gira One-The functions of the KNX room operating device are not available when it is functioning as a client. The exact range of functions are described in the Gira online catalogue and the technical documentation for the device.Notes:-Suitable for indoor use only.-Recommended mounting height: 150 cm above floor.-Installation is performed on a deep device box (an electronics box is recommended for a LAN connection).-Communication with the KNX installation uses the KNXnet/IP standard exclusively.-An IP router for KNX must be used to connect the Gira G1 PoE to the KNX installation. Several Gira G1s can be operated on one IP router for KNX.-Commissioning in the KNX system from ETS 5.5 or higher.-Can be used as a home station in combination with the DCS IP Gateway.-When planning the system, please observe the technical information on network planning in the device documentation.-Can be updated via the Gira Project Assistant (GPA).-For the use of time switches, an internet connection to an NTP time server or a corresponding KNX clock (e.g. weather station Plus 2074 00) is required.-The use of an electronics box is recommended to install the flush-mounted connection module PoE.-A commercially available PoE-enabled switch or router or a PoE injector is required.Scope of supply:-Display module, mounting frame, 5-wire cable set, patch cord
