FRAME LED 230V CURVE, LED Indoor recessed wall light, 2700K
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Prix (hors TVA):
63,95 €
EAN: 4024163188678
MPN: 1000575
Colis: 1
Délai de livraison estimé à notre entrepôt (environ):
2-4 weeks
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | FRAME LED 230V CURVE, LED Indoor recessed wall light, 2700K |
| Marque | SLV |
| Catégories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps |
| Pays d’origine | CN |
| Code du système harmonisé | 9405 1190 00 |

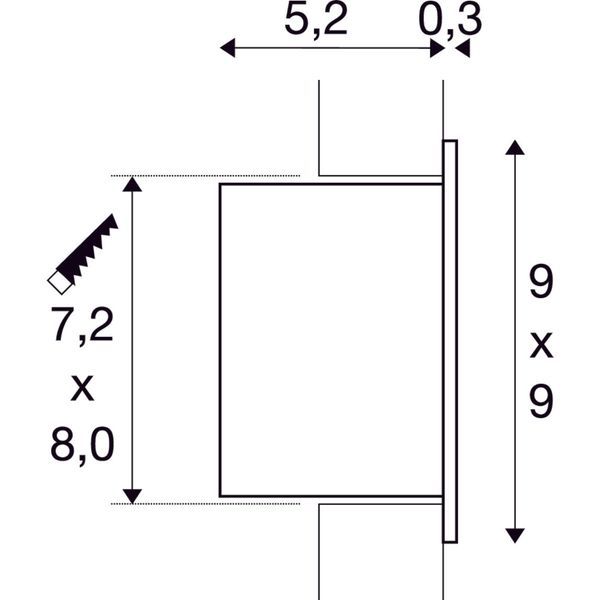

| Width | 90 mm |
| Colour housing | Grey |
| Colour rendering index CRI | 90-100 |
| Length | 90 mm |
| Height/depth | 55 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 100-277 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 2700 K |
| Max. system power | 3.1 W |
| Rated luminous flux according to IEC 62722-2-1 | 100 lm |
| Luminaire efficacy | 32.26 lm/W |
Détails d’emballage
| Niveau d’emballage 1 | 4024163188678 |
Autres données techniques
| Protection class | I |
| Outer diameter | 0 mm |
| Lamp holder | Other |
| Conductor cross section | 0 mm² |
| Connection type | Other |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 3.1 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 72 mm |
| Built-in diameter | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 0 cd |
| Number of poles | 0 |
| Housing material | Aluminium |
| Built-in length | 72 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Without cover |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | - |
| Covering of the luminaire with thermally insulating material possible | - |
| Suitable for number of lamps | 1 |
| Suitable for wall mounting | Yes |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Nominal current | 350 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Rated life time L90/B10 at 25 °C | 0 h |
| Total harmonic distortion | 0 |
| Rated ambient temperature according to IEC62722-2-1 | -20-30 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Focal lens |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 0 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 65 mm |
| Surface protection housing | Lacquered |
| Power factor | 0 |
| Energy Efficiency Index (EEI) | 0 |
