EATON

Flush-mounting trim ring with sheet steel door and locking rotary lever for 3-component system, W = 400 mm, H = 1060 mm

En stock: Non Stock fournisseur: Non Quantité minimale de commande: 1
Prix (hors TVA):
149,09 €
Ce prix est valable jusqu’au 31.12.25
EAN: 4015081172320
MPN: 119095
Colis: 1
Délai de livraison estimé à notre entrepôt (environ): 1-4 weeks

Technical Information

État de l’article Nouveau
Nom du fabricant BP-U-3S-400/10-P Flush-mounting trim ring with sheet steel door and locking rotary lever for 3-component system, W = 400 mm, H = 1060 mm
Marque EATON
Catégories Mounting Сomponents
Pays d’origine CZ
Code du système harmonisé 8538 9099 00
Largeur 435 mm
Hauteur 1065 mm
Profondeur 70 mm
Matériau Acier inoxydable
Degré de protection (IP) IP30

Détails d’emballage

Niveau d’emballage 1 4015081172320

Autres données techniques

Couleur Gris
Modèle Porte d'arrêt
Version CEM Yes
Finition de la surface Revêtement en poudre
Version avec porte vitrée No
Version en tant que porte pour l'interverrouillage de l'interrupteur de déconnexion No
Degré de protection (NEMA) Autre

Description

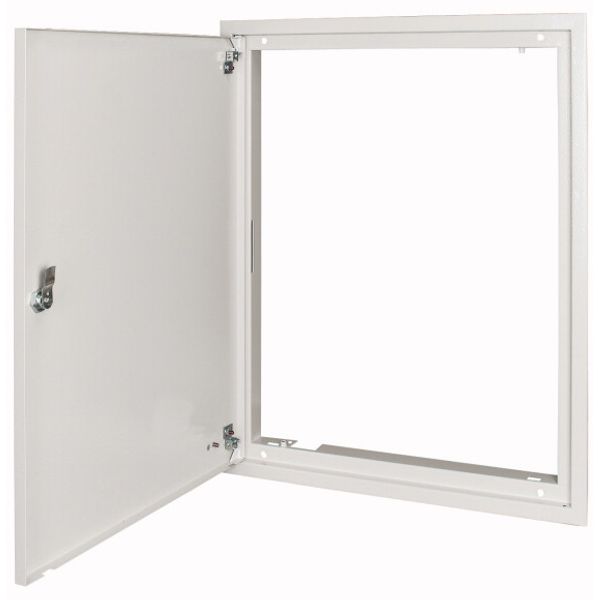

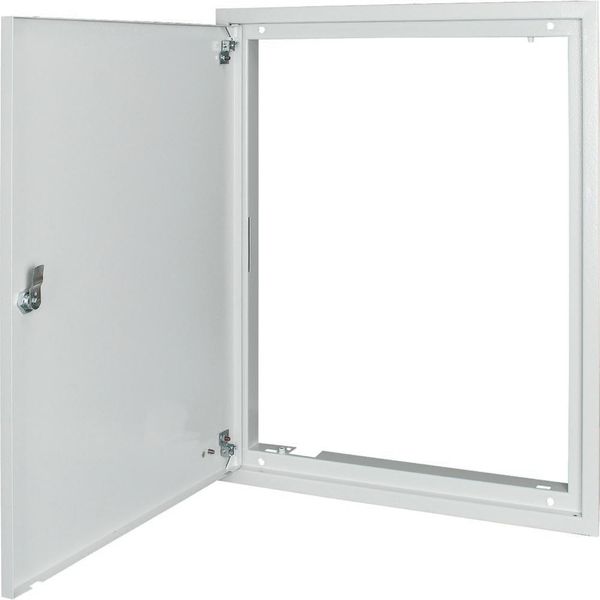

Flush-mounted service distribution board, 3-component flush-mounted door frame, with door, BP.-U-3S-, steel plate, powder-spray painted, gray RAL 7035, outside width 435 mm, outside height 1060 mm, equipment supplied: frames, door with hinges, rotary lever
