Floodlight / Projectors FaciellaS Reflector Anthracite around ETDD 80W 4100lm rotationally sym. narrow (RE) IP65 IK10 3 SDCM 7396051

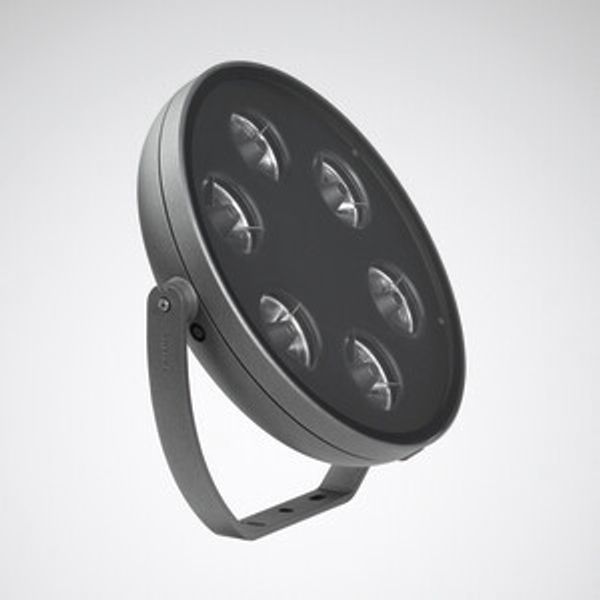

Round, compact LED projector. The luminaire is part of a series with variants that cover different lighting requirements with the same luminaire design. For direct mounting to firm underground. With ground stake (accessory) suitable for installation into substrate. With six circularly-arranged round reflectors made of highly specular faceted aluminium. With rotationally symmetric narrow light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 4100 lm, connected load 80 W, maximum luminous efficiency of luminaire 51 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Round, flat luminaire body made of corrosion-resistant die-cast aluminium. Surface is anodised and then provided with an epoxy powder primer and polyester powder coating resistant to ageing. Mounting bracket of galvanised steel. Surface anthracite coated (DB 703). On request the luminaire body can be provided without added cost in the following colours: black textured (Akzo Nobel 8118669, similar to RAL 9005, V5), white textured (Akzo Nobel 8158870, similar to RAL 9016, V6), grey textured (Akzo Nobel 8129595, similar to RAL 9006, V7). Other colour variants are available for an additional charge in accordance with the RAL or DB colour code. Length 95 mm, Luminaire height 355 mm, Width 368 mm. Luminaire head Ø 330 mm. With flat cover, extra clear. Central joint for pan-and-tilt on two axes with locking system for precise alignment of the spotlight. Horizontal rotation range: 330°, Swivel range - 45° - 90°. With housing screws of stainless steel. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, Protection rating of lamp compartment: IP65. impact resistance level in accordance with IEC 62262: IK10. Protection rating of lamp compartment: IP65. Weight: 5,3 kg. With 5-pole connection cable 5 x 0.75 mm2, 1500 mm. With electronic transformer, digitally dimmable (DALI). Surge voltage resistance Differential Mode / Common Mode: 1 kV / 2 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
