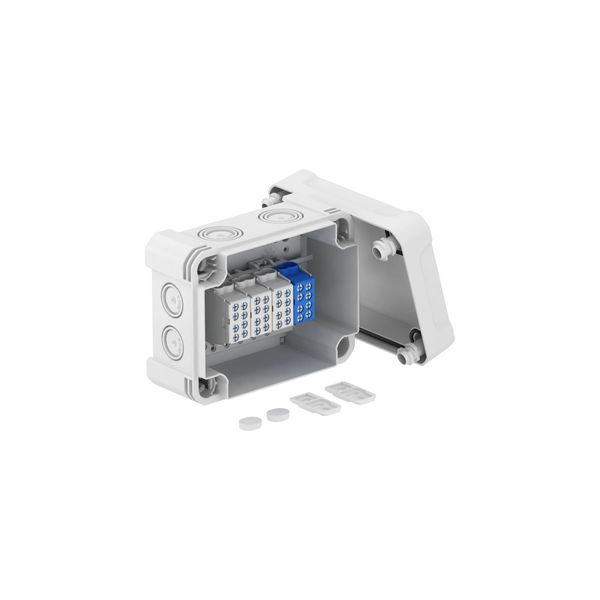

X06 H25 GP4 LGR Junction box X 06 with main terminal block
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Prix (hors TVA):
55,11 €
EAN: 4012196585847
MPN: 2005304
Délai de livraison estimé à notre entrepôt (environ):
4-6 weeks
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | X06 H25 GP4 LGR Junction box X 06 with main terminal block |
| Marque | OBO Bettermann |
| Catégories |
Installation boxes
|
| Pays d’origine | HU |
| Code du système harmonisé | 3926 9097 00 |
| Halogen free | Yes |
| Rated insulation voltage Ui | 750 V |
| Max. conductor cross section | 6 mm² |
| Degree of protection (IP) | IP67 |
Autres données techniques
| Mounting method | Wall-/ceiling mounting |
| Colour | Grey |
| Width | 117 mm |
| Depth | 87 mm |
| Shape | Rectangular |
| Surface protection | Untreated |
| Equipped with | Clamp |
| Length | 151 mm |
| Sealable | Yes |
| Operating temperature | -25-65 °C |
| Material | Plastic |
| Number of inlets | 8 |
| Explosion-tested version | No |
| Cover attachment | Screwed |
| With screening | No |
| Weatherproof | Yes |
| Inlet from the rear | No |
| Tackable | Yes |
| Type of housing feed-through | Preembossing |
