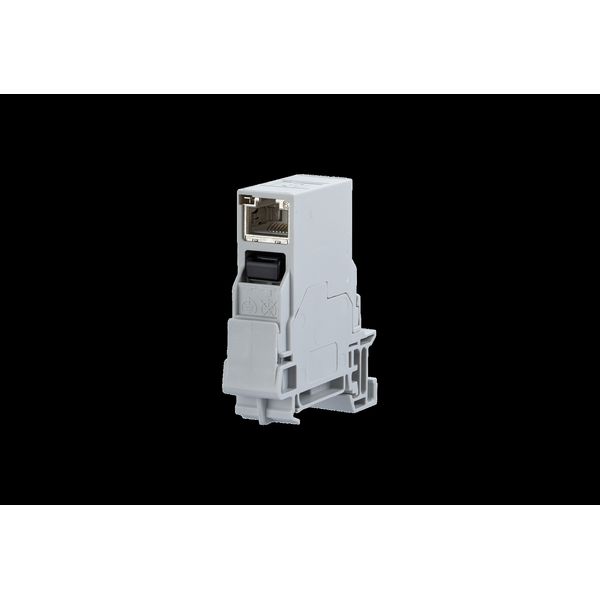

E-DAT Industry terminal rail TS35 + RJ45 coupler insert Cat.6 Class EA
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Prix (hors TVA):
23,77 €
EAN: 4250184119159
MPN: 1401206113KE
Colis: 1
Délai de livraison estimé à notre entrepôt (environ):
4-6 weeks
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | E-DAT Industry terminal rail TS35 + RJ45 coupler insert Cat.6 Class EA |
| Marque | METZ CONNECT |
| Catégories |
Distribution boards
|
| Pays d’origine | DE |
| Code du système harmonisé | 8536 6990 00 |
| Matériau | Plastique |
| Type de fixation | Rail DIN (rail chapeau) 35 mm |
| Type d'adaptateur pour rail DIN | Droit |
Détails d’emballage
| Niveau d’emballage 1 | 4250184119159, 4250184119159 |
Description
Termination unit for mounting on TH35 rails to DIN EN 60715 in electrical distribution panels for home and industrial installations, equipped with E-DAT Industry RJ45 coupler insert, vertical plugging direction, 90° to rail, compliance with class E according to ISO/IEC 11801, DIN EN 50173-1 , suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE) and HDBaseT, increased resistance to vibrations and shocks due to 4 springs on the shield plates, width of 1HP allows mounting up to 12 units in a standard electrical distribution panel, when mounted as a device of protection class I, the equipotential bonding is realized directly over the top hat rail by means of a switchable integrated equipotential spring. This has to be connected to the equipotential bonding of the building by means of a bonding terminal
Accessoire
In stock: No
METZ CONNECT
E-DAT Industry RJ45 coupler insert Class E
11,68 €
EAN: 4250184114260
MPN: 1401200810MI
Colis: 1
Boîte: 10
In stock: No
METZ CONNECT
E-DAT Industry RJ45 field jack insert Cat.6 Class EA, T568A
11,90 €
EAN: 4250184114277
MPN: 1401100810MI
Colis: 1
Boîte: 10
