Continuous lines 765... E-Line Next Fix Lens Black 3,90W 280lm 70 Emergency light Very Wide (VW) IK02 3 SDCM 7378800

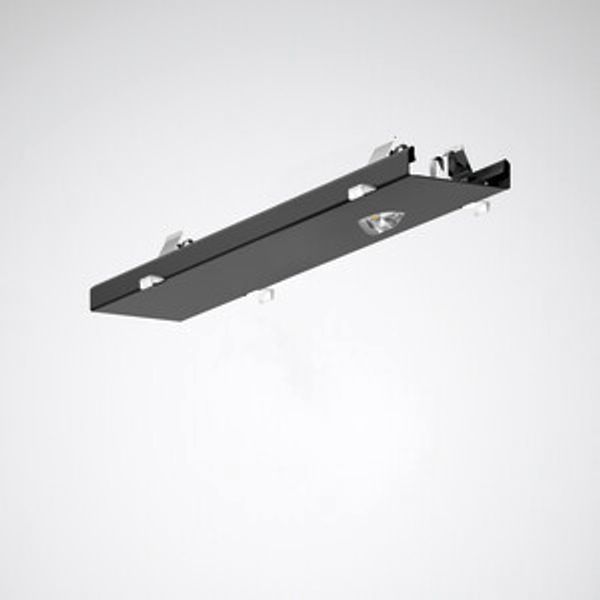

Gear tray for E-Line continuous line system with LED escape luminaire for illuminating escape paths. Safety luminaire compatible with CEAG systems(ZB96, ZB-S). The gear trays with emergency inverter must be combined with a trunking profile concept of 7LV + 7LV-type through-wiring. Gear tray in combination with accessory 07650Fi...IP64 (trunking, cover, end cap) suitable for applications requiring higher protection ratings (IP64) as well as for use in locations exposed to fire hazards according to DIN EN 60598-2-24 (D identification).. Suitable for combination with E-Line Fix 0765... trunking with female connector interval 375 mm for IP20. Compatible with E-Line T5N/LED 07650... support profiles. As single or continuous line luminaire for direct ceiling mounting as well as suspended mounting using accessories to be ordered separately. Mounting to trunking with tool-free stainless steel snap fasteners. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection. Optical system with optimised light distribution from medium heights (2,5 - 10 m). With symmetric extra wide light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 280 lm, connected load 3,9 W, maximum luminous efficiency of luminaire 72 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Gear tray of sheet steel. Surface coated black (RAL 9005). Dimensions (L x W) 368 mm x 62 mm. 75 mm maximum width due to locking device. Weight: 0,5 kg. Self-actuating electrical connection via plug contacts with phase selection. Phase selection is without use of tools. . The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
