Nombre de contacts auxiliaires comme contact normalement ouvert
6
Nombre de contacts auxiliaires comme contact normalement fermé
2
Courant nominal de fonctionnement Ie, 400 V
3 A
Adapté au fonctionnement manuel
No
Nombre de contacts auxiliaires comme contact inverseur
UN
Tension nominale d'alimentation de commande Us à AC 50HZ
220 V
Tension nominale d'alimentation Us à AC 60HZ
240 V
Tension nominale d'alimentation de commande Us à DC
UN V
Avec indication LED
No
Nombre de contacts auxiliaires comme contact normalement fermé, commutation retardée
UN
Nombre de contacts auxiliaires en tant que contact normalement ouvert, en amont
UN
Type de tension pour l'actionnement
AC
Détails d’emballage
Niveau d’emballage 1
4011209917958
Description

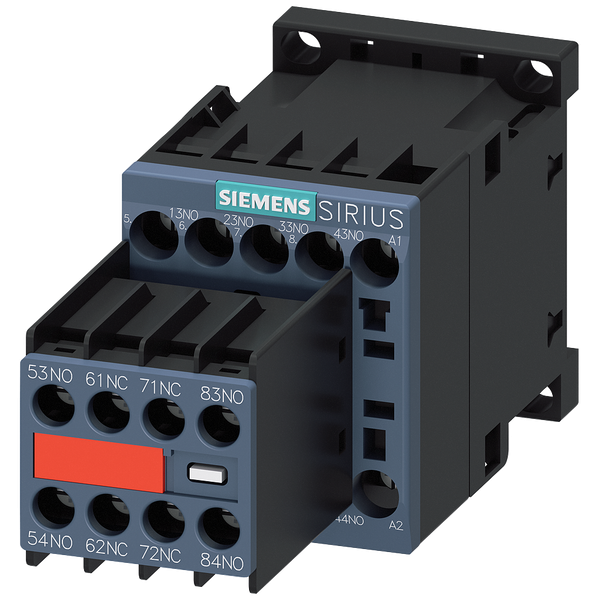

contactor relay, 6 NO + 2 NC, 220 V AC, 50 Hz, 240 V, 60 Hz, size S00, screw terminal, captive auxiliary switch Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.
The SIRIUS 3RH2 contactor relays have standard-compliant terminal designations and a reliable and time-saving connection technology. Thanks to the multiplication of outputs, simultaneous switching of several auxiliary circuits is possible. All contacts are available with positively driven operation for safety applications as well as SUVA versions. The contactor relays are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA).
They are available with AC or DC operation and with screw or spring-loaded terminals. The basic version of the contactor relays is a 4-pole design which can be extended up to 8 poles by means of snap-on auxiliary switches.
The extensive range of accessories for the 3RT2 contactors in sizes S00 to S3 can also be used for the 3RH2 contactor relays.
The 3RH2 contactor relays replace the well-proven 3RH1 series.
Simple, efficient and always up to date - SIRIUS modular system.
