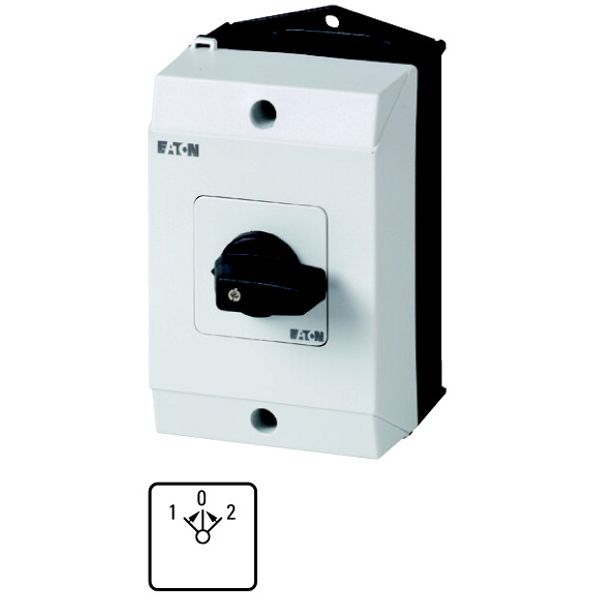

T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d image 1
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d image 2
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d image 3
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d image 4
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d image 5
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d image 6
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d thumbnail 1
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d thumbnail 2
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d thumbnail 3
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d thumbnail 4
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d thumbnail 5
T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d thumbnail 6
EATON

Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d

Commande uniquement
Prix (hors TVA):
36,87 €
Ce prix est valable jusqu’au 31.12.25
EAN: 4015082074340
MPN: 207434
Colis: 1
Délai de livraison estimé à notre entrepôt (environ): 1-4 weeks

Technical Information

État de l’article Nouveau
Nom du fabricant T0-3-8216/I1 Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, With 0 (Off) position, with spring-return from both d
Marque EATON
Catégories Off-load Switches
Pays d’origine GB
Code du système harmonisé 8536 5080 00
Modèle Inverseur
Puissance nominale de fonctionnement à AC-3, 400 V 4 kW
Courant permanent nominal Iu 20 A
Nombre de pôles 3
Courant nominal de fonctionnement Ie à AC-3, 400 V 11.5 A
Avec position zéro (off) Yes
Degré de protection (IP), face avant IP65
Type d'élément de commande Poignée courte

Détails d’emballage

Niveau d’emballage 1 4015082074340

Autres données techniques

Nombre de contacts auxiliaires comme contact normalement ouvert 0
Nombre de contacts auxiliaires comme contact normalement fermé 0
Matériau du boîtier Plastique
Avec rétraction en position 0 Yes
Nombre de contacts auxiliaires comme contact inverseur 0
Type de connexion électrique du circuit principal Raccordement à vis
Adapté au montage au sol Yes
Adapté au montage frontal No
Adapté à l'installation d'un tableau de distribution No
Adapté au montage intermédiaire No
Appareil complet dans un boîtier Yes
Degré de protection (NEMA), face avant 12

Description

Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, front plate: 2>0<1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
