Siemens

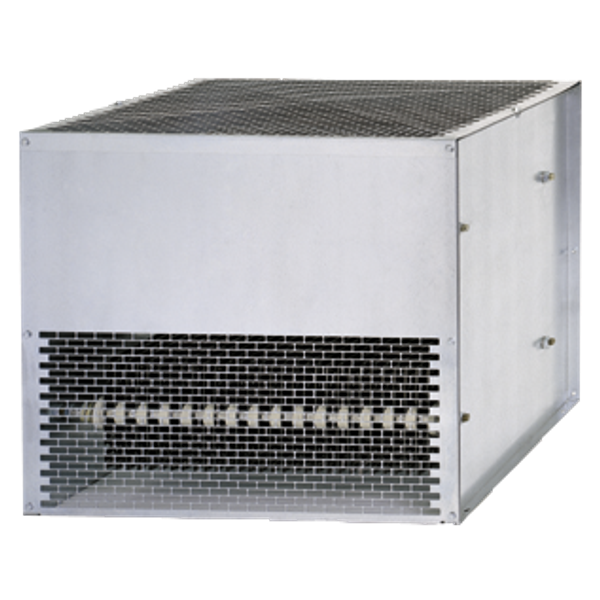

Braking resistor 4,90 Ohm 250,00 kW

En stock: Non Stock fournisseur: Non Quantité minimale de commande: 1
Prix (hors TVA):
2 243,41 € par pièce
Ce prix est valable jusqu’au 24.12.25
EAN: 0662643344486
MPN: 6SL3000-1BH32-5AA0
Colis: 1
Délai de livraison estimé à notre entrepôt (environ): 4-6 weeks

Technical Information

État de l’article Nouveau
Nom du fabricant Braking resistor 4,90 Ohm 250,00 kW
Marque Siemens
Catégories Accessories/spare parts for frequency controller
Pays d’origine DE
Code du système harmonisé 8533 2900 00
Type d'accessoire/de pièce de rechange Résistance à la rupture

Détails d’emballage

Niveau d’emballage 1 0662643344486

Autres données techniques

Accessoire No
Pièce de rechange No

Description

SINAMICS BRAKING RESISTOR INPUT: 1035 V DC OUTPUT: 250 KW/15 S 4.9 OHM Braking resistor SINAMICS braking resistor for the Chassis format of the SINAMICS S120 converter system. The excess energy of the DC link is dissipated via the braking resistor. The braking resistor is connected to a Braking Module. By positioning the braking resistor outside the cabinet or outside the switchgear room, the heat loss produced can be dissipated. This reduces the level of air conditioning required. For devices in Chassis format, two braking resistors with different rated and peak powers are available. The braking resistor is monitored based on the duty cycle. A temperature switch (NC contact) is also installed, which responds when the permissible temperature is exceeded and can be evaluated via a control system. The braking resistor is available for three-phase line voltages ranging from 380 V to 480 V and for DC link voltages ranging from 510 V to 720 V. SINAMICS – simply my drive!
