Asfora - 2pole switch, screw terminals, wo frame, anthracite
En stock: Non
Stock fournisseur: Non
Quantité minimale de commande: 1
Prix (hors TVA):
Prix sur demande
EAN: 3606480729263
MPN: EPH0200371
Colis: 1
Boîte: 10
Délai de livraison estimé à notre entrepôt (environ):
Sur demande
Technical Information
| État de l’article | Nouveau |
| Nom du fabricant | Asfora - 2pole switch, screw terminals, wo frame, anthracite |
| Marque | Schneider Electric |
| Catégories |
Interrupteurs
|
| Tension nominale | 250 V |
| Méthode de montage | Montage encastré (plâtre) |
| Disposition de l'assemblage | Élément de base avec plaque de recouvrement centrale |
| Mode de fonctionnement | Bascule |
| Couleur | Anthracite |
| Modèle | Autre |
| Sans halogène | Yes |
| Impression | Aucun |
| Protection de surface | Laqué |
| Avec lampe de signalisation | No |
| Courant nominal | 10 A |
| Espace d'étiquetage/surface d'information | No |
| Contact de rétro-signalisation | No |
| Qualité des matériaux | Thermoplastique |
| Nombre de pôles | 2 |
| Matériau | Plastique |
| Type de fixation | Montage avec griffe et vis |
| Nombre de bascules | 1 |
| Avec éclairage | No |
| Numéro RAL (similaire) | 0 |
| Transparent | No |
| Adapté au degré de protection (IP) | IP20 |
| Largeur de l'appareil | 71 mm |
| Hauteur de l'appareil | 71 mm |
| Profondeur de l'appareil | 43 mm |
| Nombre de modules (système de modules) | 0 |
| Profondeur minimale de la boîte d'encastrement | 40 mm |
Détails d’emballage
| Niveau d’emballage 1 | 3606480729263 |
| Niveau d’emballage 2 | 3606480729260 |
| Niveau d’emballage 3 | 3606480729261 |
Téléchargements
Description

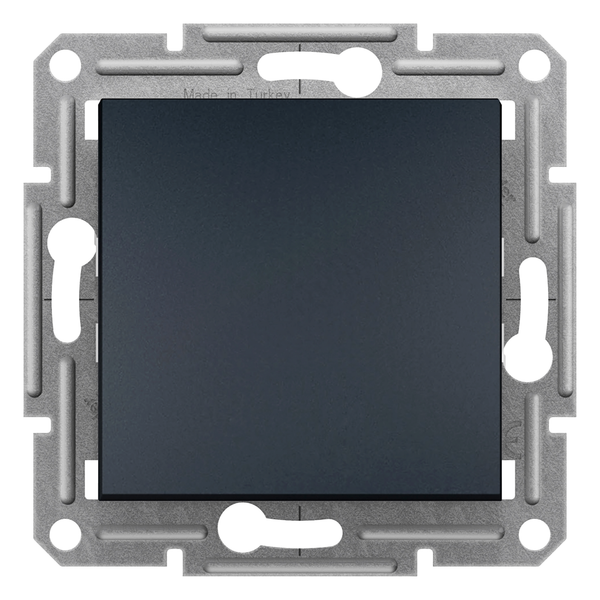

Schneider Electric Asfora switch EPH0200371 is a mechanism with fixing frame in color anthracite with 1 rocker. This is a 2-pole 1-way switch. The device's fixing mode is screws or claws. And it's rated current is 10AX, whose power range is 2300W. 71 mm, 71 mm, 43 mm is the dimension of this switch, with a projecting depth of 15 mm. Flush mounting is supported so that its box can be recessed into the surface. Painted surface finish makes it exceptional wear and corrosion resistant. IP20 level makes the switch as reliable and resistant as possible. Its connection terminals are lift terminals. The switch is made of ABS (acrylonitrile butadiene-styrene), making it as resistant as possible. The conductor material of copper makes it more reliable. It obtained VDE certificate as well. The device satisfies the standard of IEC 60669-1 too. Also, it has the quality label of CE. What's more, this switch is qualified as a green premium product. And it is mercury free, taking care of the environment and your health all the time. The updated Asfora switches now feature smaller, more compact inserts, a profiled fixing frame, improved wire inlets and release buttons, and wide, profiled claws with a return spring, improving the quality and functionality of this switch. Asfora products are made from high-quality materials that won't yellow over time. The sleek, elegant design harmonizes perfectly with virtually any interior.
