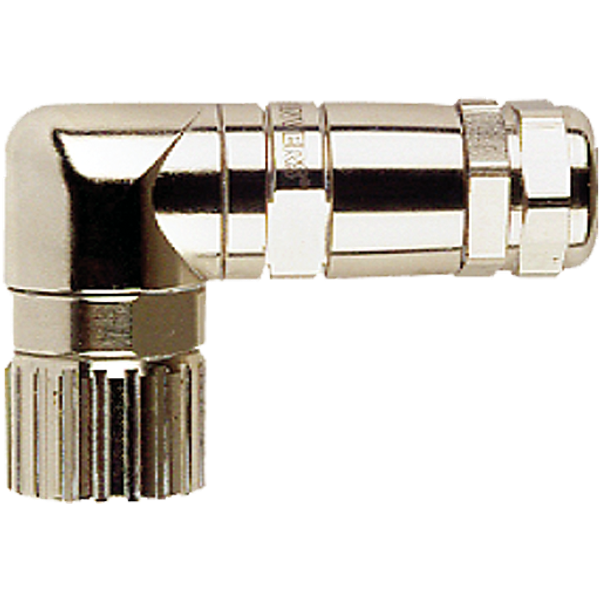

MSCON-D ROUND PLUG CONNECTOR M23
Order only
Price (excl. VAT):
66,85 €
EAN: 4048879187787
MPN: 7000-23361-0000000
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MSCON-D ROUND PLUG CONNECTOR M23 |
| Brand | Murrelektronik |
| Categories |
Circular Connectors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 160 V |
| Contact type | Bus |
| Ambient temperature | -40-125 °C |
| Degree of protection (IP), mounted | IP67 |
| Diameter connector | 25 mm |
| Rated current In | 7.5 A |
| For cable outer diameter | 8-14 mm |
| Number of power contacts | 0 |
| Number of control contacts | 19 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4048879187787, 4048879187787 |
Other Technical data
| Locking mechanism | Gland nut |
| Screened | No |
| Housing material | Zinc |
| Coating housing | Chromium-plated |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electric connection | Soldering connection |
| Material of contact surface | Gold |
| Thread size M | 23 |
| Over voltage category | III |
| Pollution degree | 3 |
| Type of housing | Angled |
| With protective conductor | No |
| Min. number of insertion cycles | 100 |
| Material thread ring | Zinc die-cast |
Downloads
Description
MSCON-D ROUND PLUG CONNECTOR M23
