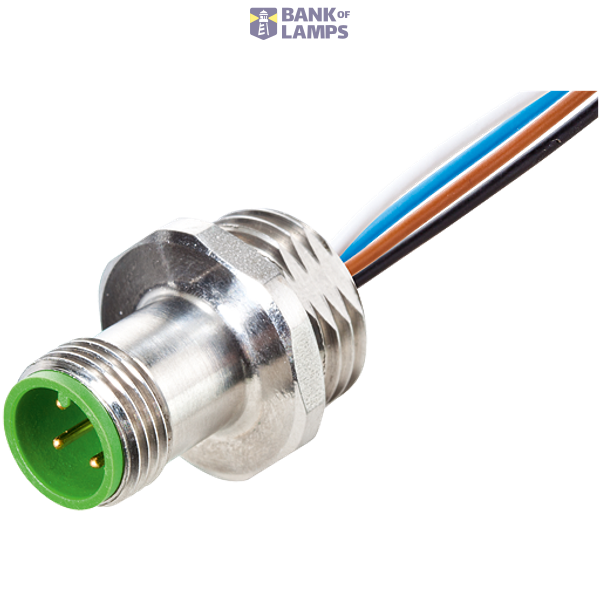

M12 male recept. A-cod. front 1/2" NPT w. nut PVC-wires, 4x18AWG, 1m
Order only
EAN: 4065909179291
MPN: 7700-13508-F170100
Package: 1
Price (excl. VAT)
26,99 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | M12 male recept. A-cod. front 1/2" NPT w. nut PVC-wires, 4x18AWG, 1m |
| Brand | Murrelektronik |
| Categories |
Circular Connectors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4290 00 |
| ETIM | EC003570 |
| Mounting method | Front mounting |
| Rated voltage | 250 V |
| Cable length | 1000 mm |
| Number of poles | 4 |
| Housing material | Brass |
| Coating housing | Nickel-plated |
| Operating temperature | -80-105 °C |
| Type of plug-in contact, inner side | None |
| Type of plug-in contact, outer side | Male (plug) |
| Degree of protection (IP), mounted | IP67 |
| Rated current In | 4 A |
Packing details
| Packing level 1 | 4065909179291, 4065909179291 |
Other Technical data
| Core cross section | 0.82 mm² |
| Material core insulation | Polyvinyl chloride (PVC) |
| Ambient temperature | -80-105 °C |
| With shield connection | Yes |
| Material of contact surface | Gold |
| With PE-connection | No |
| Pollution degree | 3 |
| Min. number of insertion cycles | 100 |
| Number of power contacts | 0 |
| Number of control contacts | 4 |
| Screw-in thread | M12 |
Downloads
Description
M12 male recept. A-cod. front 1/2" NPT incl. nut PVC-wires, 4x18AWG, 1m
