Wallbox, Type of protection IP54, Max. conductor cross section 6², Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free

Name: Wallbox, Type of protection IP54, Max. conductor cross section 6², Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
Brand: Spelsberg
Price: 1255.200 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

1 255,20 €

This price is valid until 24.12.25

EAN: 4013902694044

MPN: 59152701

Package: 1

Pallet: 48

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Wallbox, Type of protection IP54, Max. conductor cross section 6², Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
Brand	Spelsberg
Categories	Mounting racks for electric vehicles
Country of origin	DE
Harmonized System Code	8537 1091 00
Number of earth leakage circuit breakers type A	0
Number of earth leakage circuit breakers type B	0
Max. power per charging point	11 kW
Number of vehicle connectors Type 1	0
Number of vehicle connectors CHAdeMO	0
Installation side connection model	3-phase

Packing details

Packing level 1	4013902694044, 4013902694044
Packing level 2	4013902694051

Other Technical data

Mounting method	Wall mounting
Width	293 mm
Height	293 mm
Depth	110 mm
With display	No
Housing material	Plastic
Nominal connection power	11 kW
Impact strength	IK08
Degree of protection (IP)	IP54
Number of CEE socket outlets	0
Number of charging units	1
With house connection box	No
Number of vehicle connectors Type 1 CCS	0
Number of vehicle connectors Type 2	1
Number of vehicle connectors Type 2 CCS	0
Number of socket outlets Type 2	0
Number of vehicle connectors GB AC	0
Number of vehicle connectors GB DC	0
Number of socket outlets GB	0
Number of socket outlets Type 3	0
Number of household socket outlets	0
With energy meter	No
With circuit breaker	No
IFTTT support available	No
Length of charging cable	7 m
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No

Downloads

Product data sheet

Videos

Watch On Youtube

Description

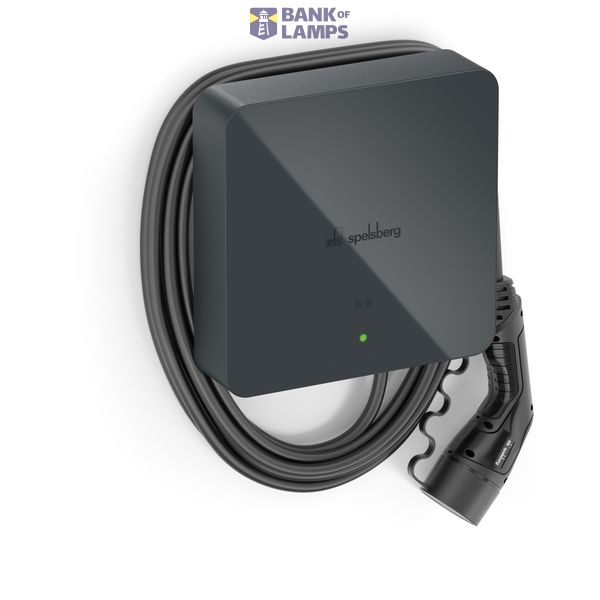

Wallbox-ideal for fast and safe charging of private e-vehicles, charging power up to 11 kW (3-phase)/3.7 kW (1-phase) and a maximum charging current of 16 A, variably adjustable charging current in 1A steps, including potential-free contact for external and mains control, integrated DC fault current detection for DC residual currents of ≥ 6 mA and temperature monitoring for a safe charging process, stylish design and compact enclosure dimensions for wall and pedestal mounting, protection class IP54, maximum connection cross-section of supply terminal 6mm², shock resistance IK08, protection class II.

Simple installation and fast configuration with the free-of-charge Spelsberg Wallbox App (available for iOS, Version 14 and higher, and Android Version 6 and higher), free charging or contactless authorisation of the charging process by RFID, LED and audible signals for clear feedback on status changes., Graphite, 7m charging cable with type 2 coupling
Dimensions: 293 x 293 x 110mm
Accessories supplied: 3 RFID chips, 4 fastening screws 6x60, 4 universal dowels 8x50, 3 DMS M16, 1 DMS M25, 1 DMS M32 and 5 chips for opening the design cover
