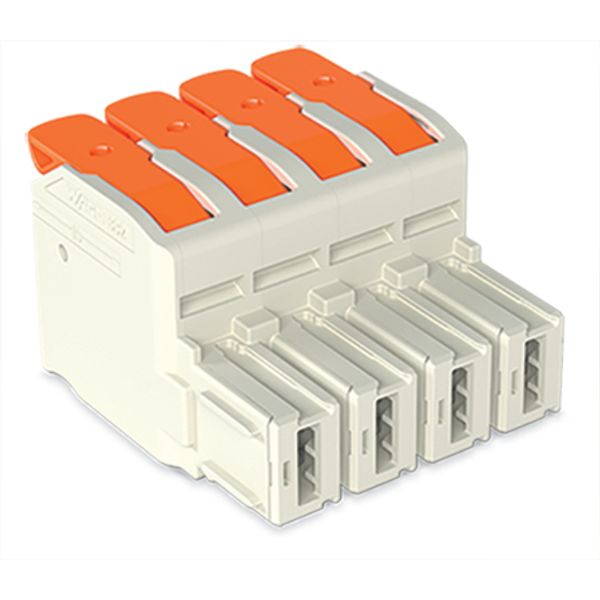

WAGO 832-1104/000-9037 image 1
WAGO 832-1104/000-9037 image 2
WAGO 832-1104/000-9037 image 3
WAGO 832-1104/000-9037 thumbnail 1
WAGO 832-1104/000-9037 thumbnail 2
WAGO 832-1104/000-9037 thumbnail 3
WAGO

WAGO 832-1104/000-9037

Order only Minimal order quantity: 20
Price (excl. VAT):
8,37 €
This price is valid until 24.12.25
Subtotal: 167,40 € MOQ: 20
EAN: 4055143787383
MPN: 832-1104/000-9037
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name WAGO 832-1104/000-9037
Brand WAGO
Categories Terminal Block Accessories
Rated voltage 1000 V
Rated current In 76 A
Explosion-tested version 'Ex e' No

Packing details

Packing level 1 4055143787383

Other Technical data

Colour Grey
Width 10.16 mm
Height 29.1 mm
Depth 49.8 mm
Number of poles 4
Operating temperature -60-120 °C
Number of clamp positions per pole 1
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Transparent No
Connectable conductor cross section solid-core 0.75-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.75-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.75-25 mm²
Connectable conductor cross section multi-wired 0.75-25 mm²
Material insulation body Thermoplastic

Accessories

Ferrule Sleeve for 16 mm² / AWG 6 insulated blue
Order only
WAGO
Ferrule Sleeve for 16 mm² / AWG 6 insulated blue
0,20 €
This price is valid until 31.12.25
Subtotal: 20,00 € MOQ: 100
EAN: 4017332277556
MPN: 216-210
Package: 1
Box: 100
Estimate delivery time at our warehouse (approx.): 1-4 weeks
Ferrule Sleeve for 1.5 mm² / AWG 16 insulated black
Order only
WAGO
Ferrule Sleeve for 1.5 mm² / AWG 16 insulated black
0,095 €
This price is valid until 24.12.25
Subtotal: 95,00 € MOQ: 1000
EAN: 4044918604307
MPN: 216-284
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Ferrule Sleeve for 4 mm² / AWG 12 insulated gray
Order only
WAGO
Ferrule Sleeve for 4 mm² / AWG 12 insulated gray
0,059 €
This price is valid until 31.12.25
Subtotal: 29,50 € MOQ: 500
EAN: 4044918604345
MPN: 216-287
Package: 1
Box: 500
Estimate delivery time at our warehouse (approx.): 1-4 weeks
832-534 Strain relief plate; for female and male connectors; 40.6 mm wide
Order only
WAGO
832-534 Strain relief plate; for female and male connectors; 40.6 mm wide
0,85 €
This price is valid until 24.12.25
Subtotal: 8,50 € MOQ: 10
EAN: 4055143935166
MPN: 832-534
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.): 4-6 weeks
center locking for even pole numbers orange
Order only
WAGO
center locking for even pole numbers orange
0,50 €
This price is valid until 24.12.25
Subtotal: 5,00 € MOQ: 10
EAN: 4055143935425
MPN: 832-522
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.): 4-6 weeks
center locking with strain relief Pin spacing 10.16 mm orange
Order only
WAGO
center locking with strain relief Pin spacing 10.16 mm orange
1,02 €
This price is valid until 24.12.25
Subtotal: 10,20 € MOQ: 10
EAN: 4055143960953
MPN: 832-544
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.): 4-6 weeks
832-542 center locking with strain relief; for female and male connectors; 20.2 mm wide
Order only
WAGO
832-542 center locking with strain relief; for female and male connectors; 20.2 mm wide
0,85 €
This price is valid until 24.12.25
Subtotal: 8,50 € MOQ: 10
EAN: 4055143961073
MPN: 832-542
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.): 4-6 weeks
