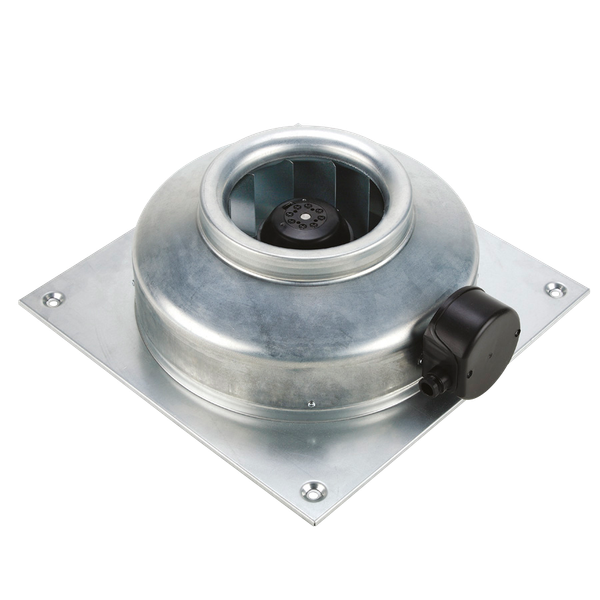

VENT/V-100N (220-240V50/60HZ) R8
Order only
Price (excl. VAT):
166,66 €
EAN: 8413893862136
MPN: 5145889600
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | VENT/V-100N (220-240V50/60HZ) R8 |
| Brand | S&P |
| Categories |
Inline Duct Fans
|
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8414 5100 00 |
| Power consumption | 0.057 kW |
| Connection | Insert end |
| Length | 123 mm |
| Housing material | Steel-treated |
| Connection voltage | 230 V |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP44 |
| With thermal protection | Yes |
| Diameter, housing | 240 mm |
| Air volume, unloaded | 308 m³/h |
| Air volume at pressure 2 | 193.322 m³/h |
| Air volume at pressure 3 | 2 m³/h |
| Pressure 2 | 175 Pa |
| Pressure 3 | 375 Pa |
| Suitable for electronic control | Yes |
| Suitable for transformer control | No |
| Max. air temperature | 60 °C |
| Indirect drive | No |
| Direct-current motor | No |
| Pole-reversible | No |
| Suitable for low-current control | No |
| Suitable for frequency control | No |
| 2-speed motor | No |
Packing details
| Packing level 1 | 8413893862136 |
