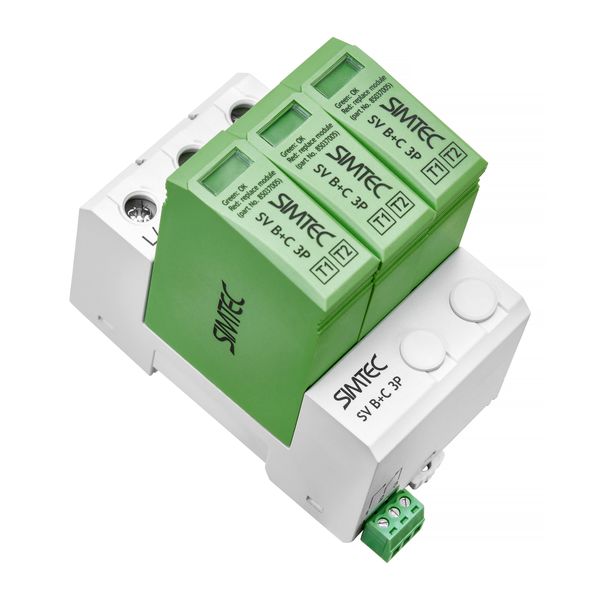

Varistor surge arresters SV B+C 3P SIMTEC for photovoltaic installations grey
Order only
Price (excl. VAT):
88,37 €
EAN: 5907813232220
MPN: 85036002
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Varistor surge arresters SV B+C 3P SIMTEC for photovoltaic installations grey |
| Brand | SIMET |
| Categories |
Surge Protection Devices (SPD)
|
| Harmonized System Code | 8535 4000 00 |
| Lightning impulse current (10/350 µs) | 6.25 kA |
| Voltage protection level | 4.5 kV |
| Nominal voltage DC | 1000 V |
| Test class | Type 1 + 2 |
| Max. continuous voltage DC | 1060 V |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 1000 V |
Packing details
| Packing level 1 | 5907813232220, 5907813232220 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 3 |
| Construction size | 3 modular spacing |
| Remote signalling | Yes |
| Integrated backup fuse | Yes |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 25 mm² |
| Energy-coordinated protection effect with regard to the terminal equipment | No |
| System configuration DC | Yes |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | No |
| System configuration TN-C-S | No |
| Voltage switching spark gap technology | No |
| Overcurrent protected voltage tapping | Yes |
Description
Varistor Surge Arrester SIMTEC for Photovoltaics SV B+C 3P SIMTEC grey, Type 1+2:PV;
