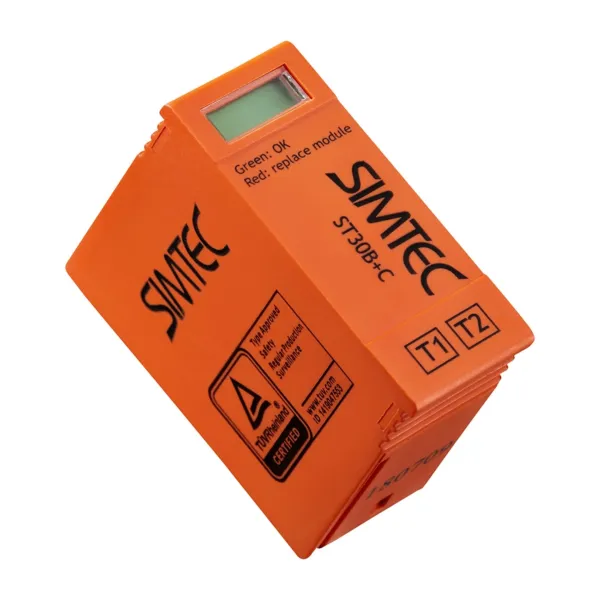

Varistor protection module STDMM30B+C-275 orange
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
22,02 €
EAN: 5907813229619
MPN: 85201028
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Varistor protection module STDMM30B+C-275 orange |
| Brand | SIMET |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | PL |
| Lightning impulse current (10/350 µs) | 18 kA |
| Voltage protection level | 1.5 kV |
| Max. continuous voltage AC | 275 V |
| Nominal voltage AC | 230 V |
| Test class | Type 1 + 2 |
Packing details
| Packing level 1 | 5907813229619, 5907813229619 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 1 |
| Construction size | 1 modular spacing |
| Remote signalling | Yes |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 25 mm² |
| Energy-coordinated protection effect with regard to the terminal equipment | No |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | Yes |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | No |
| System configuration TN-C-S | No |
| Voltage switching spark gap technology | No |
| Overcurrent protected voltage tapping | No |
Description
Moduł ochronny warystorowy do Simtec klasy B + C( do ST30B+C/1; 4)
