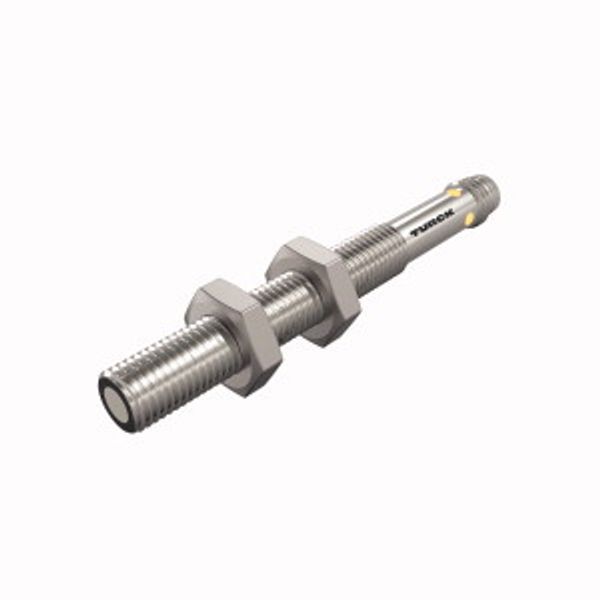

Ultrasonic Sensor Diffuse Mode Sensor RU10U-M08-UN8X-V1141
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
314,15 €
EAN: 4047101476125
MPN: 100003158
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Ultrasonic Sensor Diffuse Mode Sensor RU10U-M08-UN8X-V1141 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5019 00 |
| Housing material | Other |
| Type of electric connection | Plug-in connection |
| Construction type housing | Cylinder, screw-thread |
| Supply voltage | 15 V |
| Measuring range length | 20 mm |
Packing details
| Packing level 1 | 4047101476125, 4047101476125 |
Other Technical data
| Ambient temperature | 0 °C |
| Switching frequency | 20 Hz |
| Type of switching output | NPN |
| Type of switch function | Programmable/configurable |
| Standard for interfaces | Other |
| No-load current | 50 mA |
| Synchronization possible | No |
| Material active area of sensor | Plastic |

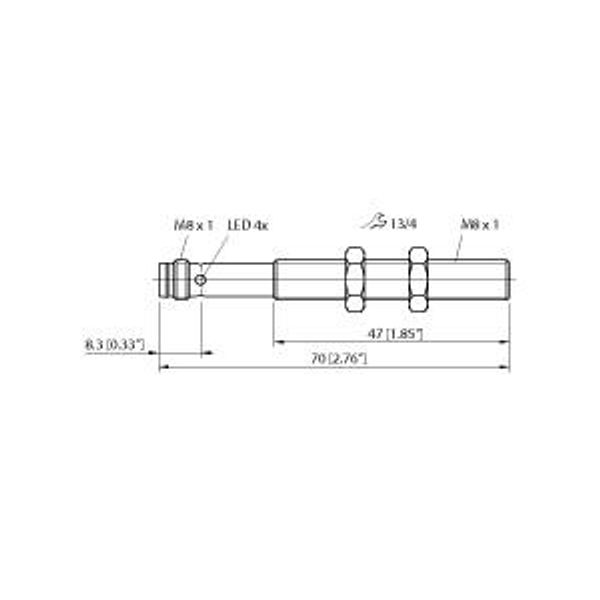

| Diameter sensor | 8 mm |
| Length of sensor | 70 mm |
Downloads
Description
Ultrasoonsensor, diffuse sensor, Bedrijfsspanning 15…30 VDC, max. reikwijdte 100 mm, Glad geluidsomvormerfront, Cilindervormige bouwvorm M08, vergoten, Aansluiting via M8 × 1 connector, Teach-bereik instelbaar via aansluitkabel, Dode zone: 2 cm, Reikwijdte: 10 cm, Resolutie: 0,2 mm, Openingshoek van de geluidskegel: +/- 9°, 1x schakeluitgang, NPN, Instelbaar via Teach-In, Parametreerbaar N.O. / N.C., IO-link
