UKK-160 distribution block
Order only
EAN: 5901769017115
MPN: 49.5260
Package: 1
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | UKK-160 distribution block |
| Brand | Elektro-Plast |
| Categories |
Busbar Systems & Accessories
|
| ETIM | EC000275 |
| Nominal current | 160 A |
| Number of poles | 1 |
| Suitable for solid conductors | Yes |
Packing details
| Packing level 1 | 5901769017115 |
Other Technical data
| Mounting method | DIN-rail/screw |

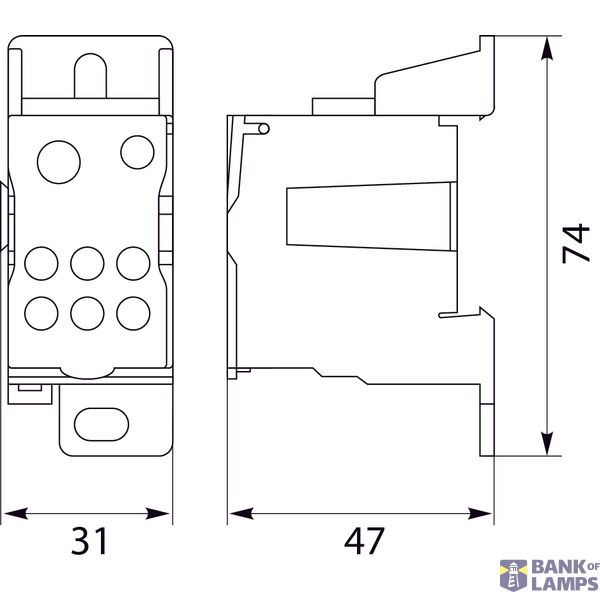

| Width | 31 mm |
| Height | 74 mm |
| Depth | 47 mm |
| Connection type | Screwing |
| Number of inputs | 2 |
| Number of outputs | 6 |
| Contact safe | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | Yes |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 6-70 mm² |
| Conductor cross section, output | 2.5-16 mm² |
Description
Distribution blocks are used as connecting elements for copper and aluminum conductors of protective conductors (PE), neutral conductor (N), and phase conductors (L1, L2, L3) in devices installed in switchboards, distribution and control cabinets, or control panels, among others. The terminals are equipped with screw-type openings for electrical conductors, into which the insulated wire end is inserted.
