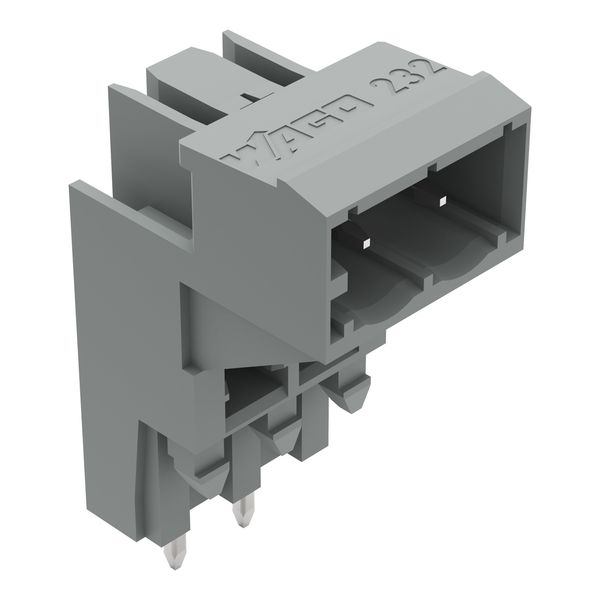

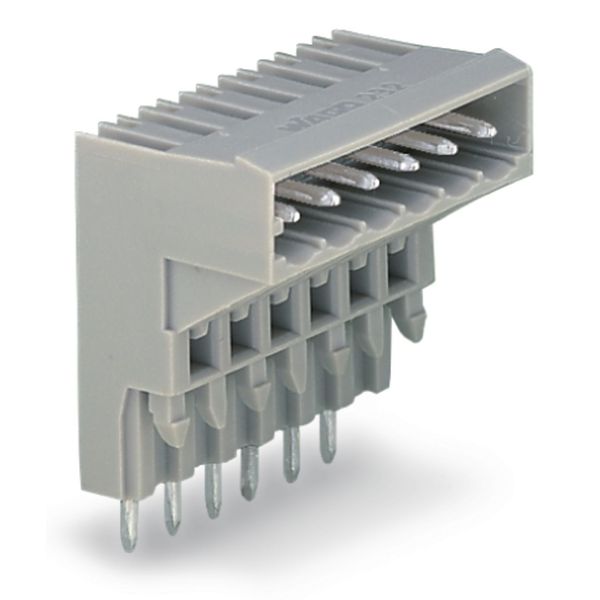

THT male header for double-deck assembly 1.0 x 1.0 mm solder pin angle

Name: THT male header for double-deck assembly 1.0 x 1.0 mm solder pin angle
Brand: WAGO
Price: 2.010 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

2,01 €

This price is valid until 24.12.25

Subtotal: 100,50 € MOQ: 50

EAN: 4044918685498

MPN: 232-338

Package: 1

Box: 50

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	THT male header for double-deck assembly 1.0 x 1.0 mm solder pin angle
Brand	WAGO
Categories	PCB Connectors & Terminals
Country of origin	DE
Harmonized System Code	8536 6990 00
Type of connection	Flexible PCB-connector
Rated voltage	320 V
Number of poles	8
Operating temperature	-60-100 °C
Rated surge voltage	4 kV
Type of electric connection	Soldering connection
Connector model	Free connector
Angle PCB/contact	0°/180° (horizontal)
Rated current In	12 A

Packing level 1	4044918685498
Packing level 2	4044918685498

Colour housing	Grey
Contact type	Pin
Type of fastening	Solder
Inflammability class of insulation material according to with UL94	V0
Material of contact surface	Tin
Over voltage category	III
Pollution degree	2
Length pin	5 mm
Modular spacing connections	5 mm
Number of plug-in contact rows	1
Type of banding	None
Suitable for PCB thickness	1.5 mm
Modular spacing contacts	5 mm
Material insulation body	Thermoplastic
Type of PCB fastening	Connecting contact
