WAGO

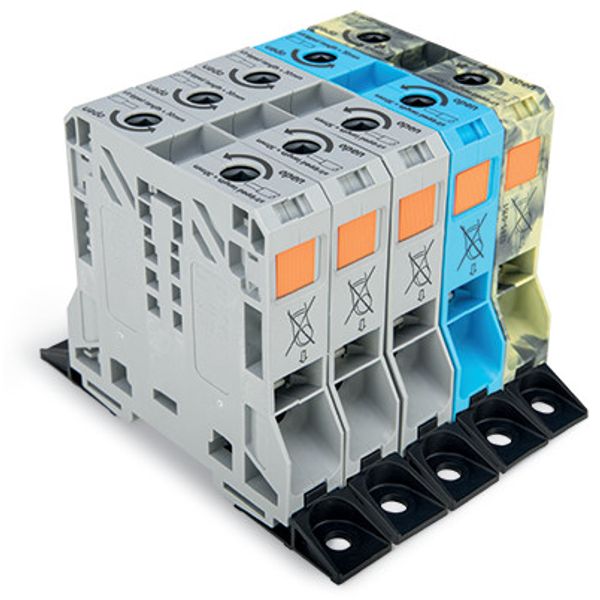

Three phase set with 50 mm² high-current tbs with fixing flanges multi

Order only
Price (excl. VAT):
54,69 €
This price is valid until 24.12.25
EAN: 4055143656993
MPN: 285-148
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Three phase set with 50 mm² high-current tbs with fixing flanges multi
Brand WAGO
Categories Terminal Block Accessories
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
Rated voltage 1000 V
Rated current In 150 A
Explosion-tested version 'Ex e' No

Packing details

Packing level 1 4055143656993

Other Technical data

Mounting method DIN rail (top hat rail) 35 mm
Colour Multi-coloured
Width 100 mm
Halogen free Yes
Height 130 mm
Depth 94 mm
Number of poles 5
Operating temperature 105 °C
Number of clamp positions per pole 2
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Transparent No
Connectable conductor cross section solid-core 10-50 mm²
Connectable conductor cross section fine-strand without cable end sleeve 10-70 mm²
Material insulation body Thermoplastic

Description

Three phase set with 50 mm² high-current tbs with fixing flanges copper 50 mm² POWER CAGE CLAMP 50,00 mm² multicoloured
