WAGO

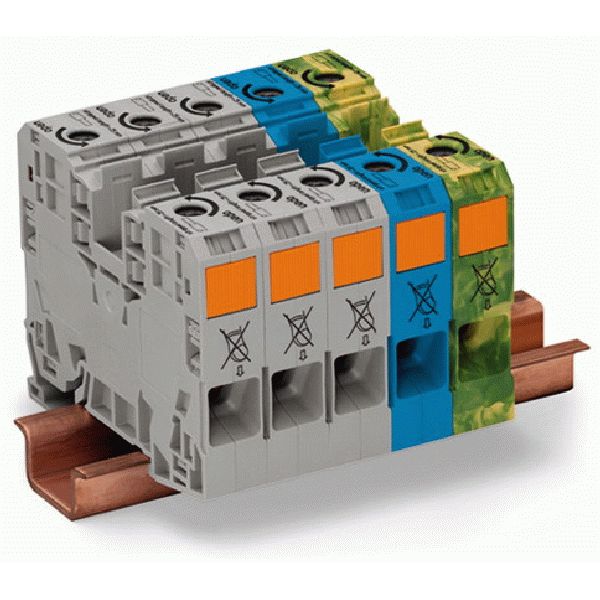

Three phase set with 35 mm² high-current tbs only for DIN 35 x 15 rail

In stock: Yes Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
25,89 €
This price is valid until 24.12.25 or while stock lasts
EAN: 4045454584252
MPN: 285-139
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Three phase set with 35 mm² high-current tbs only for DIN 35 x 15 rail
Brand WAGO
Categories Terminal Block Accessories
Country of origin DE
Harmonized System Code 8536 9010 00
Rated voltage 1000 V
Rated current In 125 A
Explosion-tested version 'Ex e' No

Packing details

Packing level 1 4045454584252

Other Technical data

Mounting method DIN rail (top hat rail) 35 mm
Colour Multi-coloured
Width 80 mm
Halogen free Yes
Height 86 mm
Depth 63 mm
Number of poles 5
Operating temperature 105 °C
Number of clamp positions per pole 2
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Transparent No
Connectable conductor cross section solid-core 6-35 mm²
Connectable conductor cross section fine-strand with cable end sleeve 6-35 mm²
Connectable conductor cross section fine-strand without cable end sleeve 6-35 mm²
Connectable conductor cross section multi-wired 6-35 mm²
Material insulation body Thermoplastic

Description

Three phase set with 35 mm² high-current tbs only for DIN 35 x 15 rail copper 35 mm² POWER CAGE CLAMP 35,00 mm² gray/blue/green-yellow
