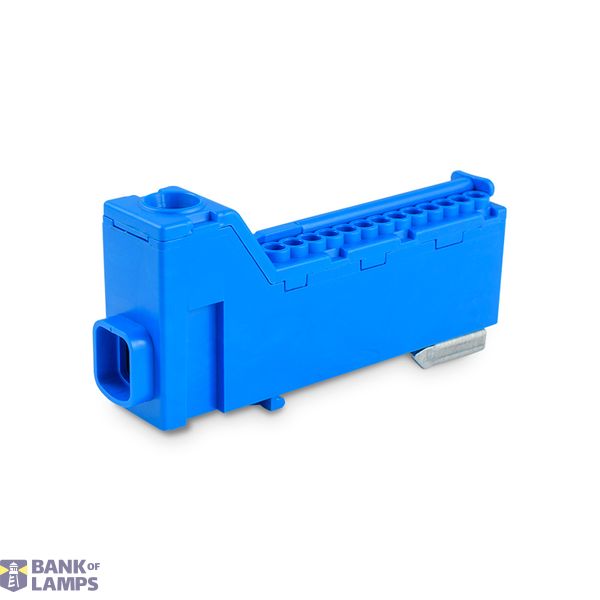

Threadless block TLC14N 1.5-2.5 /25
Order only
EAN: 5905548287386
MPN: 49.1402
Package: 1
No price options are available.
Technical Information
| Item condition | New |
| Manufacture name | Threadless block TLC14N 1.5-2.5 /25 |
| Brand | Elektro-Plast |
| Categories |
Busbar Systems & Accessories
|
| ETIM | EC000275 |
| Nominal current | 63 A |
| Number of poles | 1 |
| Suitable for solid conductors | Yes |
Packing details
| Packing level 1 | 5905548287386 |
Other Technical data
| Mounting method | DIN rail |

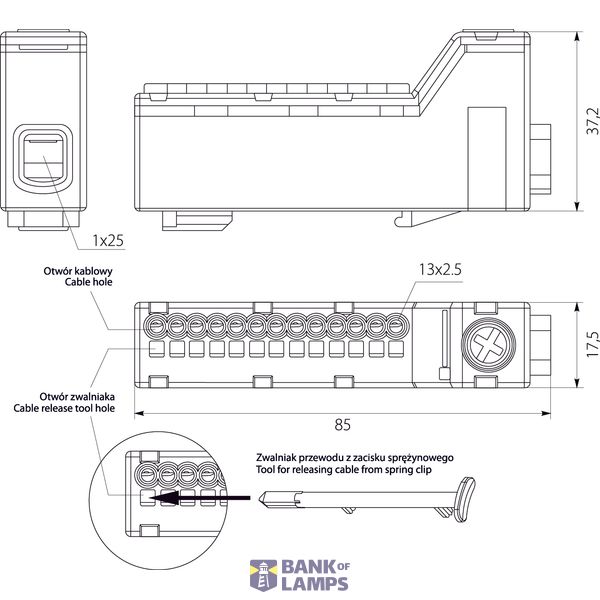

| Width | 17.5 mm |
| Height | 85 mm |
| Depth | 37 mm |
| Connection type | Screw-/spring clamp connection |
| Number of inputs | 1 |
| Number of outputs | 13 |
| Contact safe | Yes |
| Suitable for fine strand conductors | No |
| Suitable for stranded conductors | No |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 2.5-25 mm² |
| Conductor cross section, output | 1.5-2.5 mm² |
Description
The TLC14 1.5-2.5/25 threadless block is used to separate the neutral point (N), to separate the protective conductor (PE), or can be used to separate the phase (L). The block is for rigid copper conductors in the range of 1.5-2.5m.
