THR PCB terminal block push-button 1.5 mm², black image 1
THR PCB terminal block push-button 1.5 mm², black image 2
THR PCB terminal block push-button 1.5 mm², black image 3
THR PCB terminal block push-button 1.5 mm², black thumbnail 1
THR PCB terminal block push-button 1.5 mm², black thumbnail 2
THR PCB terminal block push-button 1.5 mm², black thumbnail 3
WAGO

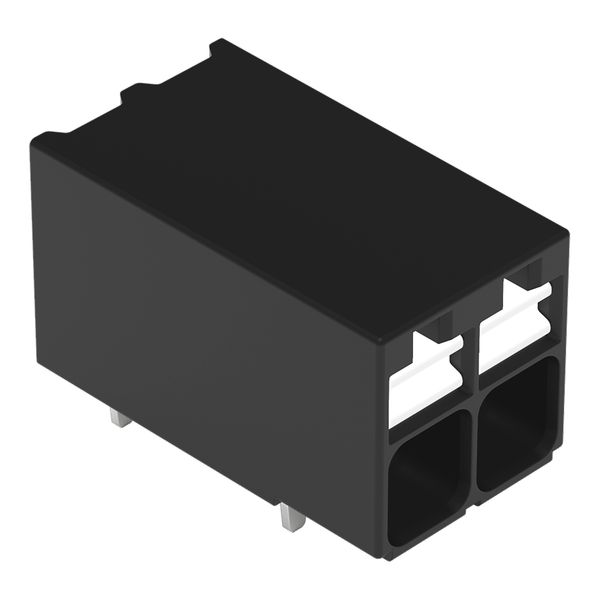

THR PCB terminal block push-button 1.5 mm², black

Order only Minimal order quantity: 432
Price (excl. VAT):
0,319 €
This price is valid until 24.12.26
Subtotal: 137,80 € MOQ: 432
EAN: 4066966141856
MPN: 2086-1202
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name THR PCB terminal block push-button 1.5 mm², black
Brand WAGO
Categories PCB Connectors & Terminals
Rated voltage 160 V
Number of levels 1
Rated surge voltage 2.5 kV
Angle PCB/conductor connection 0°/180° (horizontal)
Rated current In 17.5 A
Number of electrical connections 2

Packing details

Packing level 1 4066966141856

Other Technical data

Height 10.2 mm
Colour housing Black
Operating temperature -60-105 °C
Type of fastening Solder
Inflammability class of insulation material according to with UL94 V0
Over voltage category III
Pollution degree 2
Connection type conductor Spring clamp connection
Connection type PCB THR connection
Length pin 2.4 mm
Material connection surface Tin
Modular spacing connections 3.5 mm
Type of banding None
Connectable conductor cross section solid-core 0.14-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.25-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.14-1.5 mm²
Connectable conductor cross section multi-wired 0.14-1.5 mm²
Material insulation body Thermoplastic
Type of PCB fastening Connecting contact

Accessories

Ferrule Sleeve for 0.25 mm² / AWG 24 uninsulated silver-colored
Order only
WAGO

Ferrule Sleeve for 0.25 mm² / AWG 24 uninsulated silver-colored

0,006 €
This price is valid until 24.12.26
Subtotal: 6,00 € MOQ: 1000
EAN: 4017332277570
MPN: 216-131
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Ferrule Sleeve for 0.34 mm² / AWG 24 uninsulated
Order only
WAGO

Ferrule Sleeve for 0.34 mm² / AWG 24 uninsulated

0,006 €
This price is valid until 24.12.26
Subtotal: 6,00 € MOQ: 1000
EAN: 4017332277594
MPN: 216-132
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Ferrule Sleeve for 0.5 mm² / AWG 22 uninsulated silver-colored
Order only
WAGO

Ferrule Sleeve for 0.5 mm² / AWG 22 uninsulated silver-colored

0,006 €
This price is valid until 24.12.26
Subtotal: 6,00 € MOQ: 1000
EAN: 4017332277600
MPN: 216-121
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Ferrule Sleeve for 0.5 mm² / AWG 22 uninsulated silver-colored
Order only
WAGO

Ferrule Sleeve for 0.5 mm² / AWG 22 uninsulated silver-colored

0,006 €
This price is valid until 24.12.26
Subtotal: 6,00 € MOQ: 1000
EAN: 4017332277617
MPN: 216-101
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Ferrule Sleeve for 0.75 mm² / AWG 20 uninsulated silver-colored
Order only
WAGO

Ferrule Sleeve for 0.75 mm² / AWG 20 uninsulated silver-colored

0,006 €
This price is valid until 24.12.26
Subtotal: 6,00 € MOQ: 1000
EAN: 4017332277631
MPN: 216-102
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Ferrule Sleeve for 1 mm² / AWG 18 uninsulated
Order only
WAGO

Ferrule Sleeve for 1 mm² / AWG 18 uninsulated

0,006 €
This price is valid until 24.12.26
Subtotal: 6,00 € MOQ: 1000
EAN: 4017332277655
MPN: 216-103
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Ferrule Sleeve for 1.5 mm² / AWG 16 uninsulated silver-colored
Order only
WAGO

Ferrule Sleeve for 1.5 mm² / AWG 16 uninsulated silver-colored

0,006 €
This price is valid until 24.12.26
Subtotal: 6,00 € MOQ: 1000
EAN: 4017332277679
MPN: 216-104
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Ferrule Sleeve for 0.5 mm² / 20 AWG uninsulated
Order only
WAGO

Ferrule Sleeve for 0.5 mm² / 20 AWG uninsulated

0,006 €
This price is valid until 24.12.26
Subtotal: 6,00 € MOQ: 1000
EAN: 4044918016353
MPN: 216-141
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Ferrule Sleeve for 0.75 mm² / 18 AWG uninsulated
Order only
WAGO

Ferrule Sleeve for 0.75 mm² / 18 AWG uninsulated

0,006 €
This price is valid until 24.12.26
Subtotal: 6,00 € MOQ: 1000
EAN: 4044918016360
MPN: 216-142
Box: 1000
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Operating tool Blade: 2.5 x 0.4 mm with a partially insulated shaft
Order only
WAGO

Operating tool Blade: 2.5 x 0.4 mm with a partially insulated shaft

3,68 €
This price is valid until 24.12.26
EAN: 4045454937386
MPN: 210-719
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.): 4-6 weeks
