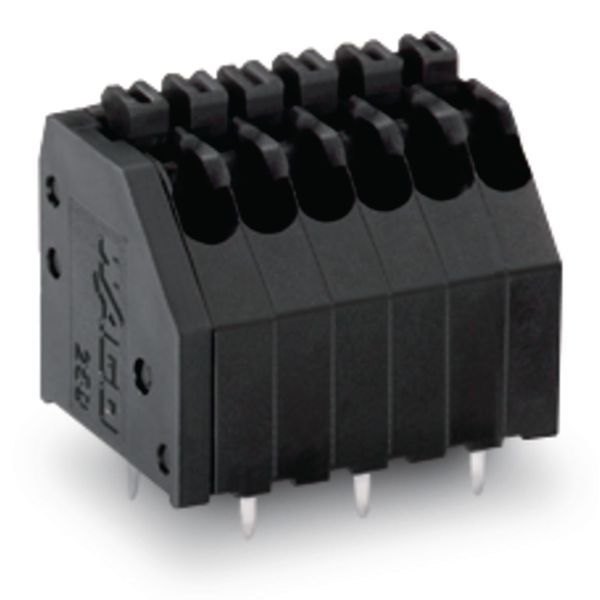

THR PCB terminal block push-button 0.5 mm² black

Name: THR PCB terminal block push-button 0.5 mm² black
Brand: WAGO
Price: 0.277 EUR
Availability: PreOrder

Order only Minimal order quantity: 180

Price (excl. VAT):

0,277 €

This price is valid until 31.12.25

Subtotal: 49,86 € MOQ: 180

EAN: 4055143945059

MPN: 250-402/353-604

Package: 1

Box: 180

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	THR PCB terminal block push-button 0.5 mm² black
Brand	WAGO
Categories	PCB Connectors & Terminals
Country of origin*	CH
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Rated voltage	160 V
Number of levels	1
Rated surge voltage	2.5 kV
Angle PCB/conductor connection	45°/135° (downwards inclined)
Rated current In	4 A
Number of electrical connections	2

Height	13.1 mm
Colour housing	Black
Operating temperature	-60-115 °C
Type of fastening	Solder
Inflammability class of insulation material according to with UL94	V2
Over voltage category	III
Pollution degree	2
Connection type conductor	Push-in clamp connection
Connection type PCB	THR connection
Length pin	2.4 mm
Material connection surface	Tin
Modular spacing connections	2.5 mm
Type of banding	None
Connectable conductor cross section solid-core	0.14-0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-0.5 mm²
Connectable conductor cross section multi-wired	0.2-0.5 mm²
Material insulation body	Thermoplastic
Type of PCB fastening	Connecting contact
